Čerpadlo posilovače řízení for BMW 3 Series E46 330Cd (2006)

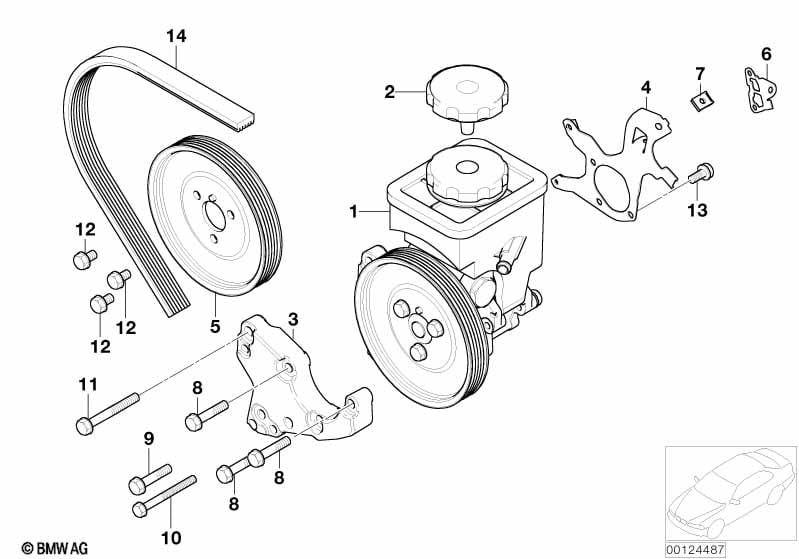

This Čerpadlo posilovače řízení technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Cd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Čerpadlo posilovače řízení | ZF FP-42 | 1 | 32416761876 | Shop at ECS Tuning | |||||
| 02 | Víko | DIESEL | 1 | 32411096499 | Shop at ECS Tuning | |||||
| 03 | Držák lopatkové čerpadlo přední | ALU | 1 | 32412247556 | $16.11 | Shop at ECS Tuning | ||||
| 04 | Opěrný plech | 1 | 32417789799 | Shop at ECS Tuning | ||||||
| 05 | Řemenice | D=145MM | 1 | 32417787106 | $41.77 | Shop at ECS Tuning | ||||
| 06 | Úhelník | 1 | 32417806980 | Shop at ECS Tuning | ||||||
| 07 | C-Svorka matice | M6-ZNS3 | 1 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 08 | Šestihranný šroub s podložkou | M8X38-Z1 | 3 | 07119901536 | $0.65 | Shop at ECS Tuning | ||||
| 09 | Šestihranný šroub s podložkou | M8X40-U1-8.8 | 1 | 07119904514 | $0.49 | Shop at ECS Tuning | ||||
| 10 | Šestihranný šroub s podložkou | M6X85-U1-8.8 | 1 | 07119905548 | $3.42 | Shop at ECS Tuning | ||||
| 11 | Šestihranný šroub s podložkou | M8X80-U1-8.8 | 1 | 07119906270 | $3.37 | Shop at ECS Tuning | ||||
| 12 | Šestihranný šroub s podložkou | M8X14 ZNNIV SI | 3 | 07119905527 | $0.47 | Shop at ECS Tuning | ||||
| 13 | Šestihranný šroub s podložkou | M8X20-U1-8.8 | 3 | 09/2001 | 07119904992 | $0.55 | Shop at ECS Tuning | |||
| 14 | Klínový žebrovaný řemen | 6PK X 2080 | 1 | 11288477779 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330Cd Čerpadlo posilovače řízení?
- This technical diagram illustrates the Čerpadlo posilovače řízení within the Řízení group for the 3 Series E46 330Cd produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Čerpadlo posilovače řízení (Part #32416761876).
- Which models use the hardware listed in this Čerpadlo posilovače řízení?
- The hardware and components featured in the Čerpadlo posilovače řízení are specific to the 3 Series E46 330Cd produced during 2006. These technical specifications ensure that parts like the Čerpadlo posilovače řízení (32416761876) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Čerpadlo posilovače řízení assembly?
- Each item in the Čerpadlo posilovače řízení corresponds to the numbered list below the illustration. For the 3 Series E46 330Cd, you can identify the Čerpadlo posilovače řízení by locating its position on the schematic, which then links to the official BMW part number 32416761876 for the Řízení section.
