Volant Airbag multifunkční Steptronic for BMW MINI R50 Cooper (2000)

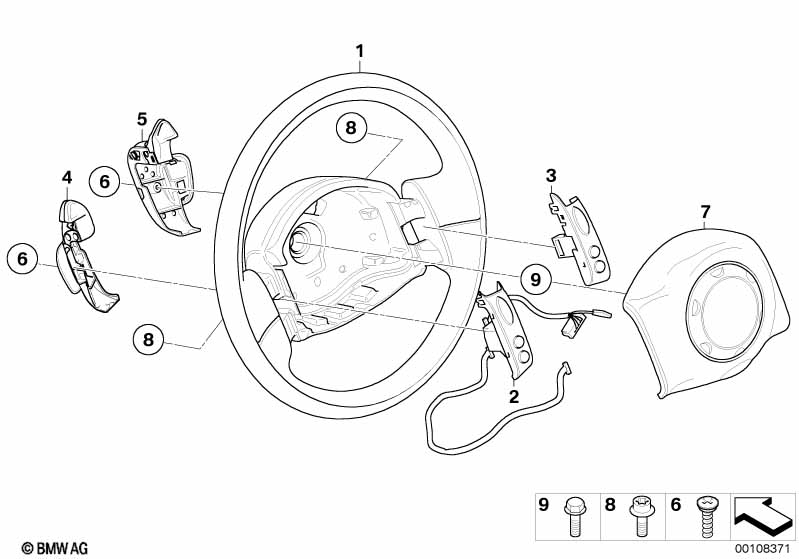

This Volant Airbag multifunkční Steptronic technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Steptronic a Multifunkce pro volant |
S202A=Ano S249A=Ano |
||||||||
| Pro vozidla s Steptronic a Volant kůže Airbag a Multifunkce pro volant POZOR! Číslo dílu 6 770 428 již není k dostání. Je nutné objednat vysoce kvalitní volant "Cooper S" číslo dílu 0 146 480. |
S202A=Ano S240A=Ano S249A=Ano |
|||||||||
| 01 | Volant kůže multifunkční | 1 | 07/2004 | 32336770428 | $394.95 | UKONČENO | Shop at ECS Tuning | |||
| Pro vozidla s Steptronic a Multifunkce pro volant a Volant kůže COOPER S |
S202A=Ano S249A=Ano S253A=Ano |
|||||||||
| 01 | Volant kůže „COOPER S“ multifunkční | 1 | 32330146480 | $451.95 | Shop at ECS Tuning | |||||
| 02 | Spínač regulace rychlosti levý | 1 | 61316929371 | $120.27 | +core | Shop at ECS Tuning | ||||
| 03 | Spínač regulace rychlosti pravý | 1 | 61316929372 | $120.27 | +core | Shop at ECS Tuning | ||||
| 04 | Kolébkový spínač levý | 1 | 61316929369 | UKONČENO, +core | Shop at ECS Tuning | |||||
| 05 | Kolébkový spínač pravý | 1 | 61316929370 | UKONČENO, +core | Shop at ECS Tuning | |||||
| 06 | Šroub pro plasty | 2 | 32346758266 | $0.34 | Shop at ECS Tuning | |||||
| 07 | Ochranná deska airbag | 1 | 32306779259 | $440.86 | Shop at ECS Tuning | |||||
| 08 | Šroub Torx | M6X23 | 2 | 32306754624 | $6.78 | Shop at ECS Tuning | ||||
| 09 | Šroub Torx mikrozapouzdřený | M14X1.5X25 ZNS3 | 2 | 07149890645 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
