Sportovní volant airbag Steptronic for BMW MINI R50 Cooper (2000)

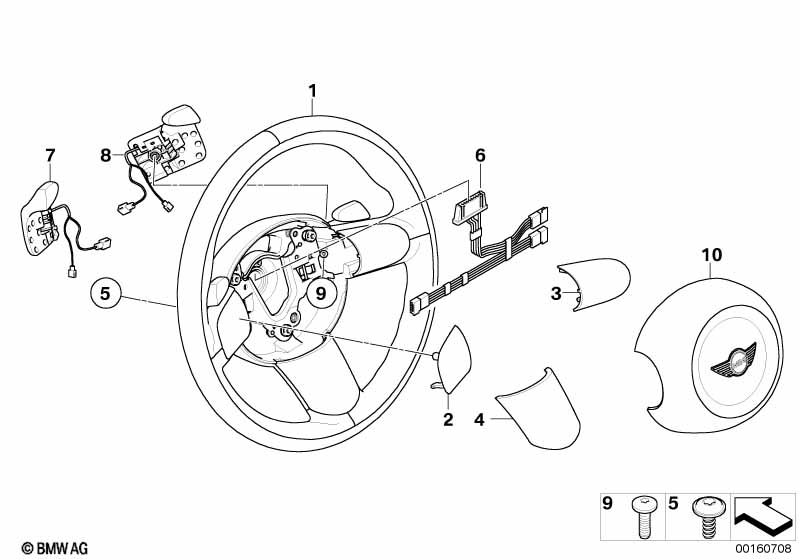

This Sportovní volant airbag Steptronic technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Sport-kožený volant airbag |
S255A=Ano |
||||||||
| Pro vozidla s Steptronic a Sport-kožený volant airbag |
S202A=Ano S255A=Ano |
|||||||||
| 01 | Sportovní volant airbag kůže Steptronic | 1 | 32306765660 | $515.00 | +core | Shop at ECS Tuning | ||||
| 02 | Clona sportovní volant levá | 1 | 32306765093 | $25.76 | Shop at ECS Tuning | |||||
| 03 | Clona sportovní volant pravá | 1 | 32306765088 | $25.76 | Shop at ECS Tuning | |||||
| 04 | Clona sportovní volant dolní | 1 | 32306765092 | $25.76 | Shop at ECS Tuning | |||||
| 05 | Šroub vnitřní Torx | 4X12MM | 3 | 32306762922 | $3.70 | Shop at ECS Tuning | ||||
| 06 | Spojovací vedení volant | 1 | 61316954015 | $25.67 | Shop at ECS Tuning | |||||
| 07 | Kolébkový spínač levý | 1 | 61316954012 | $293.39 | +core | Shop at ECS Tuning | ||||
| 08 | Kolébkový spínač pravý | 1 | 61316954013 | $293.39 | +core | Shop at ECS Tuning | ||||
| 09 | Šroub s čočkovou hlavou | M5X22MM | 2 | 32346759915 | $2.41 | Shop at ECS Tuning | ||||
| 10 | Modul airbagu strana řidiče | 1 | 32306779258 | $462.92 | +core | Shop at ECS Tuning | ||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
