Sport.volant airbag multif. Steptronic for BMW MINI R50 Cooper (2000)

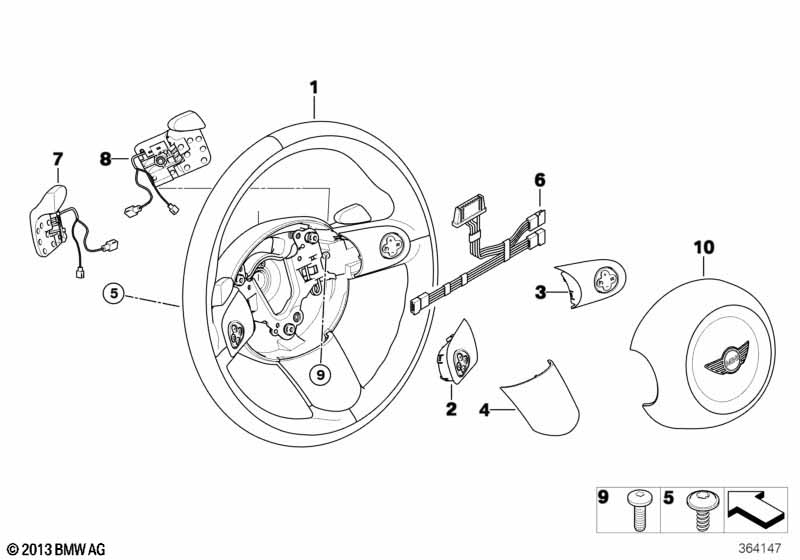

This Sport.volant airbag multif. Steptronic technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Multifunkce pro volant a Sport-kožený volant airbag |
S249A=Ano S255A=Ano |
||||||||
| Pro vozidla s Steptronic a Multifunkce pro volant a Sport-kožený volant airbag |
S202A=Ano S249A=Ano S255A=Ano |
|||||||||
| 01 | Sport.vol. airbag kůže Steptronic multi. | 1 | 32306769735 | $628.00 | +core | Shop at ECS Tuning | ||||
| 02 | Spínač rádio | 1 | 08/2004 | 61316957302 | $80.19 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Přepínač tempomatu | 1 | 08/2004 | 61316957304 | $120.27 | Shop at ECS Tuning | ||||
| 03 | Přepínač tempomatu | 1 | 08/2004 | 61316957304 | $120.27 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Spínač rádio | 1 | 08/2004 | 61316957302 | $80.19 | Shop at ECS Tuning | ||||
| 04 | Clona sportovní volant dolní | 1 | 32306765092 | $25.76 | Shop at ECS Tuning | |||||
| 05 | Šroub vnitřní Torx | 4X12MM | 3 | 32306762922 | $3.70 | Shop at ECS Tuning | ||||
| 06 | Spojovací vedení volant | 1 | 61316954014 | $30.43 | Shop at ECS Tuning | |||||
| 07 | Kolébkový spínač levý | 1 | 61316954012 | $293.39 | +core | Shop at ECS Tuning | ||||
| 08 | Kolébkový spínač pravý | 1 | 61316954013 | $293.39 | +core | Shop at ECS Tuning | ||||
| 09 | Šroub s čočkovou hlavou | M5X22MM | 2 | 32346759915 | $2.41 | Shop at ECS Tuning | ||||
| 10 | Modul airbagu strana řidiče | 1 | 32306779258 | $462.92 | +core | Shop at ECS Tuning | ||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Sport.volant airbag multif. Steptronic?
- This technical diagram illustrates the Sport.volant airbag multif. Steptronic within the Řízení group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Sport.vol. airbag kůže Steptronic multi. (Part #32306769735).
- Which models use the hardware listed in this Sport.volant airbag multif. Steptronic?
- The hardware and components featured in the Sport.volant airbag multif. Steptronic are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the Sport.vol. airbag kůže Steptronic multi. (32306769735) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sport.volant airbag multif. Steptronic assembly?
- Each item in the Sport.volant airbag multif. Steptronic corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Sport.vol. airbag kůže Steptronic multi. by locating its position on the schematic, which then links to the official BMW part number 32306769735 for the Řízení section.
