Hydraulické řízení-olejová vedení for BMW 5 Series E60 LCI 520d

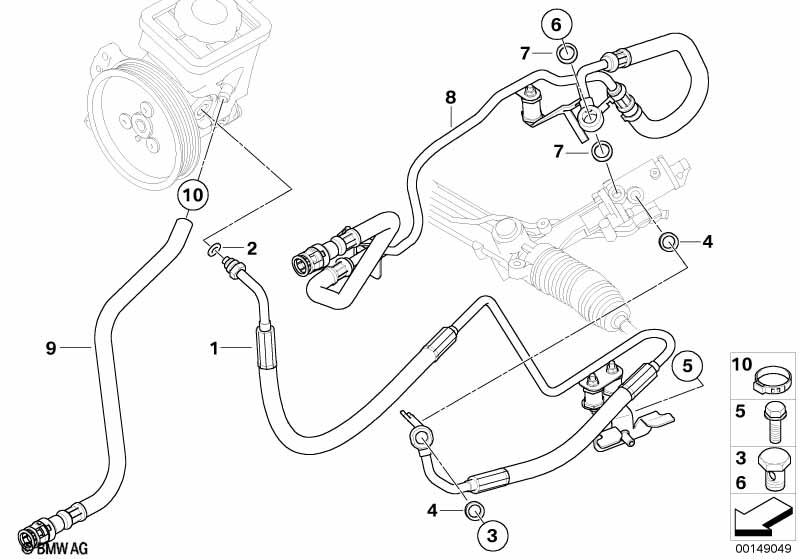

This Hydraulické řízení-olejová vedení technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520d. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pružná hadice | 1 | 32416781795 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Těsnicí kroužek | D=7,65MM | 2 | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 03 | Dutý šroub se zpětným ventilem | M14X1,5X27,4 | 1 | 32416781261 | $10.02 | Shop at ECS Tuning | ||||
| 04 | Těsnicí kroužek | A14X20-CUSN | 2 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 04 | Těsnicí kroužek | A14X18-CUSN | 2 | 07119906464 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Šestihranný šroub s podložkou | M6X20 | 3 | 07/2007 | 07119904527 | $0.44 | Shop at ECS Tuning | |||
| 05 | Šestihranný šroub s podložkou | M6X20-U1-ZNS3 | 3 | 07119903849 | $1.05 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Dutý šroub | M16X28 | 1 | 32416852470 | Shop at ECS Tuning | |||||
| 07 | Těsnicí kroužek | A16X22-CUSN | 2 | 32411093597 | $0.27 | Shop at ECS Tuning | ||||
| 08 | Zpětné potrubí | 1 | 32416781798 | Shop at ECS Tuning | ||||||
| 09 | Zpětné potrubí chladiče | 1 | 32416770430 | Shop at ECS Tuning | ||||||
| 10 | Hadicová svorka | 1 | 32416751128 | $0.98 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 LCI 520d Hydraulické řízení-olejová vedení?
- This technical diagram illustrates the Hydraulické řízení-olejová vedení within the Řízení group for the 5 Series E60 LCI 520d. It provides a detailed exploded view of the components, identifying key parts such as the Pružná hadice (Part #32416781795).
- Which models use the hardware listed in this Hydraulické řízení-olejová vedení?
- The hardware and components featured in the Hydraulické řízení-olejová vedení are specific to the 5 Series E60 LCI 520d. These technical specifications ensure that parts like the Pružná hadice (32416781795) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydraulické řízení-olejová vedení assembly?
- Each item in the Hydraulické řízení-olejová vedení corresponds to the numbered list below the illustration. For the 5 Series E60 LCI 520d, you can identify the Pružná hadice by locating its position on the schematic, which then links to the official BMW part number 32416781795 for the Řízení section.
