Hydraulické řízení-olejová vedení for BMW 5 Series E61 LCI 525i (2010)

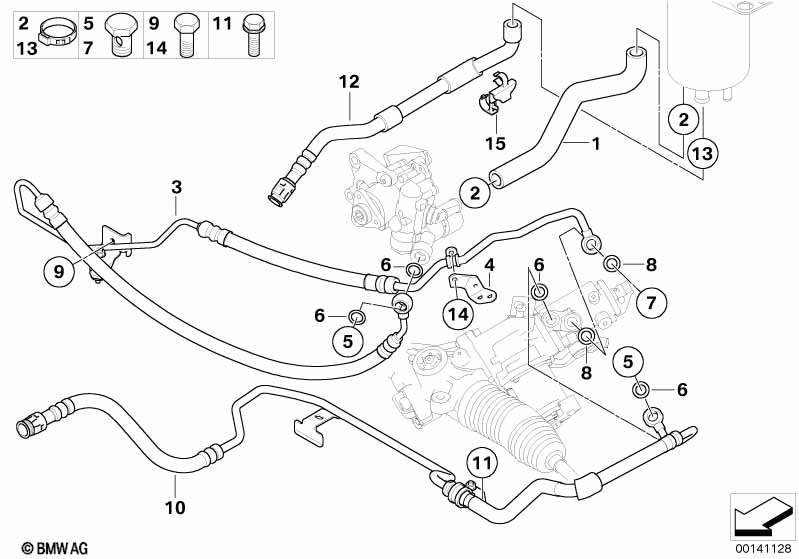

This Hydraulické řízení-olejová vedení technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Aktivní řízení nebo Dynamic Drive |
S217A=Ne S229A=Ne |
||||||||
| 01 | Sací potrubí | 1 | 32416774187 | Shop at ECS Tuning | ||||||
| 02 | Hadicová svorka | 2 | 32416751127 | $1.12 | Shop at ECS Tuning | |||||
| 03 | Pružná hadice | 1 | 32416774188 | Shop at ECS Tuning | ||||||
| 04 | Držák pružná hadice | 1 | 32416782024 | $2.79 | Shop at ECS Tuning | |||||
| 05 | Dutý šroub | M16X28 | 2 | 32416852470 | Shop at ECS Tuning | |||||
| 06 | Těsnicí kroužek | A16X22-CUSN | 4 | 32411093597 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Dutý šroub se zpětným ventilem | M14X1,5X27,4 | 1 | 32416781261 | $10.02 | Shop at ECS Tuning | ||||
| 08 | Těsnicí kroužek | A14X20-CUSN | 2 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 08 | Těsnicí kroužek | A14X18-CUSN | 2 | 07119906464 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Šestihranný šroub | M6X18MM | 1 | 32416782036 | $0.48 | Shop at ECS Tuning | ||||
| 10 | Zpětné potrubí | 1 | 32416782453 | Shop at ECS Tuning | ||||||
| 11 | Šestihranný šroub s podložkou | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 12 | Zpětné potrubí chladiče | 1 | 32416782255 | Shop at ECS Tuning | ||||||
| 13 | Hadicová svorka | 1 | 32416751128 | $0.98 | Shop at ECS Tuning | |||||
| 14 | Šestihranný šroub | M6X15-U1-8.8 | 1 | 07119902937 | $0.80 | Shop at ECS Tuning | ||||
| 15 | Držák hadice chlazení | 1 | 17127549717 | $5.77 | Shop at ECS Tuning | |||||
