Hydr.řízení olejová vedení/Dynamic Drive for BMW 7 Series F02 750Li

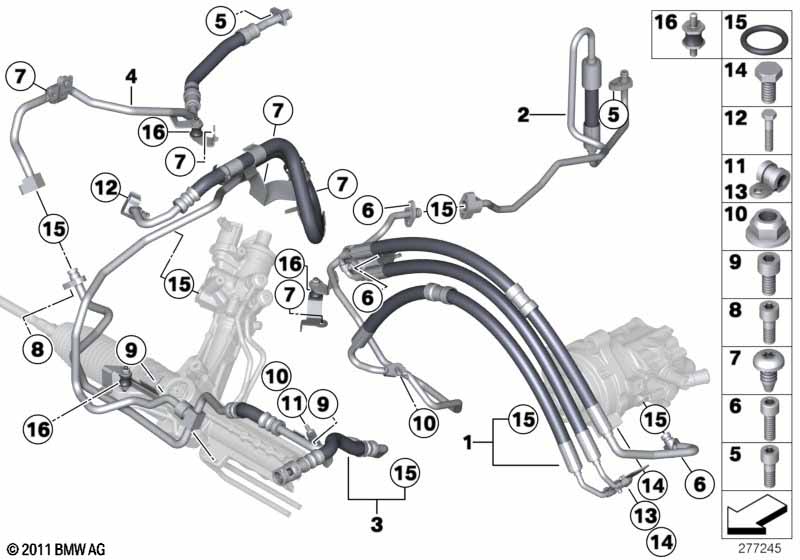

This Hydr.řízení olejová vedení/Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 750Li. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Dynamic Drive |
S229A=Ano |
|||||||||
| 01 | Pružná hadice Dynamic Drive | 1 | 08/2011 | 32416853948 | Shop at ECS Tuning | |||||
| 02 | Pružná hadice Dynamic Drive 2.část | PART 2 | 1 | 08/2011 | 32416795131 | Shop at ECS Tuning | ||||
| 03 | Zpětné potrubí Dynamic Drive | 1 | 08/2011 | 32416789248 | Shop at ECS Tuning | |||||
| Pro vozidla s Dynamic Drive a Adaptivní pohon |
S229A=Ano S2VAA=Ano |
|||||||||
| 03 | Zpětné potrubí | 1 | 08/2011 | 32416789246 | Shop at ECS Tuning | |||||
| Pro vozidla s Dynamic Drive |
S229A=Ano |
|||||||||
| 04 | Zpětné potrubí Dynamic Drive | 1 | 08/2011 | 32416796370 | Shop at ECS Tuning | |||||
| 05 | Isa-šroub | M8X22-ZNNIV SI | 2 | 08/2011 | 07129905769 | $0.47 | Shop at ECS Tuning | |||
| 06 | Šroub s válcovou hlavou | M6X18-10.9-ZNS3 | 5 | 08/2011 | 07119906651 | Shop at ECS Tuning | ||||
| 07 | Šroub Torx samořezný | M6X13-ZNNIVSI | 4 | 08/2011 | 31146786689 | Shop at ECS Tuning | ||||
| 08 | Isa-šroub | M8X20-8.8-ZNS3 | 1 | 08/2011 | 07129904065 | $1.96 | Shop at ECS Tuning | |||
| 09 | Isa-šroub | M6X12-8.8-ZNNIV | 2 | 08/2011 | 07129905867 | Shop at ECS Tuning | ||||
| 10 | Šestihranná matice s podložkou | M6-8-ZNNIV SI | 2 | 08/2011 | 07119905949 | $0.24 | Shop at ECS Tuning | |||
| 11 | Spona | D=10/6,4 | 1 | 08/2011 | 12141305028 | $1.58 | Shop at ECS Tuning | |||
| 12 | Šestihranný šroub | M8X40-8.8-ZNS3 | 1 | 08/2011 | 07119902910 | $2.05 | Shop at ECS Tuning | |||
| 13 | Spona | D=18/6,4 | 1 | 08/2011 | 64503450202 | $3.12 | Shop at ECS Tuning | |||
| 14 | Šestihranný šroub | M6X12-8.8-ZNNIV | 3 | 08/2011 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 15 | O-kroužek | 11X1,8 HNBR | 4 | 08/2011 | 32416788696 | $5.00 | Shop at ECS Tuning | |||
| 16 | Pryžové ložisko | H=17 | 3 | 08/2011 | 32416769256 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Šestihranná matice s podložkou | M6-8-ZNNIV SI | 2 | 08/2011 | 07119905949 | $0.24 | Shop at ECS Tuning | |||
