Svorná vložka-unášecí příruba/uložení for BMW 3 Series E21 316 (1977)

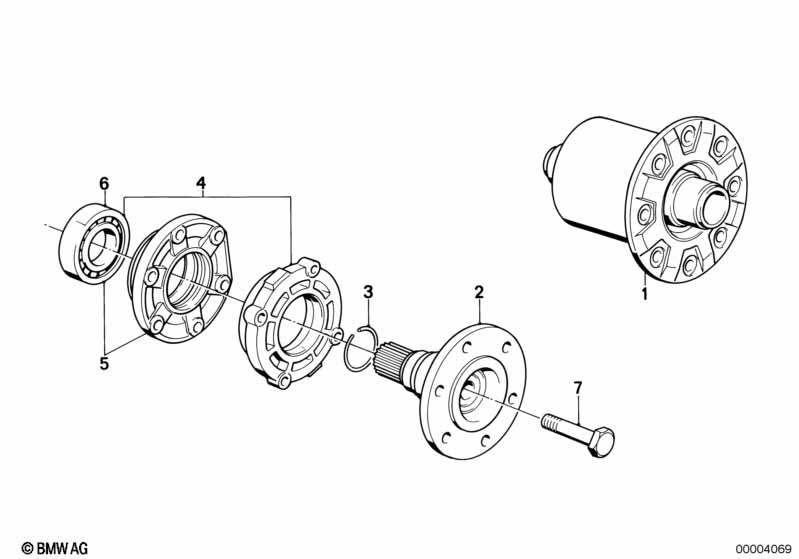

This Svorná vložka-unášecí příruba/uložení technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ZF.-Nr. 4061 604 165 - 4061 604 196 | |||||||||
| 01 | Svorná vložka | 25% | 1 | 05/1977 | 08/1978 | 33141206800 | $4168.26 | UKONČENO | Shop at ECS Tuning | |
| 02 | Unášecí příruba výstup | MIT SPERRE | 2 | 05/1977 | 08/1978 | 33131206146 | $94.86 | Shop at ECS Tuning | ||
| 03 | Pojistný kroužek | 2 | 08/1978 | 33131207280 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Ložiskové víko | 2 | 08/1978 | 33111200682 | $158.49 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Kuželíkové ložisko | 41,2X73,4X19,5 | 2 | 08/1978 | 33131205117 | Shop at ECS Tuning | ||||
| 06 | Kuželíkové ložisko | 41,2X73,4X19,5 | 2 | 08/1978 | 33131205117 | Shop at ECS Tuning | ||||
| 07 | Šestihranný šroub | M12X1,5X90 | 2 | 08/1978 | 07119914617 | UKONČENO | Shop at ECS Tuning | |||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 316 Svorná vložka-unášecí příruba/uložení?
- This technical diagram illustrates the Svorná vložka-unášecí příruba/uložení within the Zadní náprava group for the 3 Series E21 316 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Svorná vložka (Part #33141206800).
- Which models use the hardware listed in this Svorná vložka-unášecí příruba/uložení?
- The hardware and components featured in the Svorná vložka-unášecí příruba/uložení are specific to the 3 Series E21 316 produced during 1977. These technical specifications ensure that parts like the Svorná vložka (33141206800) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Svorná vložka-unášecí příruba/uložení assembly?
- Each item in the Svorná vložka-unášecí příruba/uložení corresponds to the numbered list below the illustration. For the 3 Series E21 316, you can identify the Svorná vložka by locating its position on the schematic, which then links to the official BMW part number 33141206800 for the Zadní náprava section.
