Skříň převodovky-víko/zavěšení for BMW 5 Series E12 520 (1977)

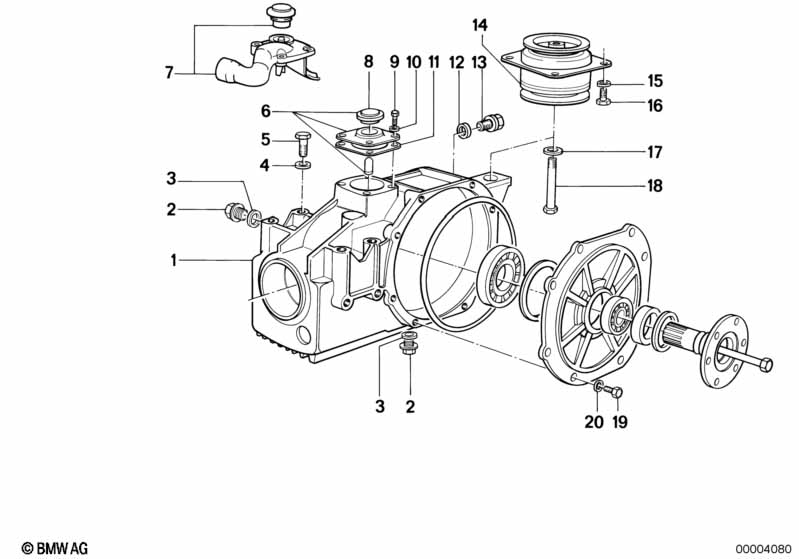

This Skříň převodovky-víko/zavěšení technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pouzdro | 1 | 33113704100 | $341.50 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Šroubový uzávěr s O-kroužkem | M22X1,5-ZNS3 | 2 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| 03 | Těsnicí kroužek | A22X27-AL | 2 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Podložka | A8 | 8 | 33173628125 | $0.95 | UKONČENO | Shop at ECS Tuning | |||
| 05 | Šestihranný šroub | M12X1,5X25 | 8 | 07119911694 | $0.82 | Shop at ECS Tuning | ||||
| 06 | Víko | 1 | 33111202624 | $19.67 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Ventilační víčko | 1 | 33111202497 | $17.23 | Shop at ECS Tuning | |||||
| 09 | Šestihranný šroub | M6X16-8.8-ZNS3 | 4 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Pružná podložka černá | B6-ZN | 4 | 07/1981 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 10 | Podložka | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 11 | Těsnění bez azbestu | 1 | 33113404142 | $8.18 | Shop at ECS Tuning | |||||
| 14 | Pryžové ložisko | RUND | 1 | 33171126951 | $86.07 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Šestihranný šroub | M12X1,5X70 ZNS | 1 | 07119903156 | $1.64 | Shop at ECS Tuning | ||||
| 15 | Pružná podložka | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 16 | Šestihranný šroub | M10X18-8.8-ZNS3 | 4 | 07119904033 | $0.65 | Shop at ECS Tuning | ||||
| 17 | Podložka | 13X30X4MM | 1 | 33171125439 | $0.73 | Shop at ECS Tuning | ||||
| 18 | Šestihranný šroub | M12X1,5X85 | 1 | 07119914681 | $2.09 | Shop at ECS Tuning | ||||
| 19 | Šestihranný šroub | M8X25-8.8-ZNNIV | 8 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 19 | Šestihranný šroub | M8X25 | 8 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 20 | Pružná podložka | 8,4X15-ZNS3 | 8 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Skříň převodovky-víko/zavěšení?
- This technical diagram illustrates the Skříň převodovky-víko/zavěšení within the Zadní náprava group for the 5 Series E12 520 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Pouzdro (Part #33113704100).
- Which models use the hardware listed in this Skříň převodovky-víko/zavěšení?
- The hardware and components featured in the Skříň převodovky-víko/zavěšení are specific to the 5 Series E12 520 produced during 1977. These technical specifications ensure that parts like the Pouzdro (33113704100) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Skříň převodovky-víko/zavěšení assembly?
- Each item in the Skříň převodovky-víko/zavěšení corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Pouzdro by locating its position on the schematic, which then links to the official BMW part number 33113704100 for the Zadní náprava section.
