Opěrné ložisko/pružná podložka/mont.díly for BMW 3 Series E21 320i (1979)

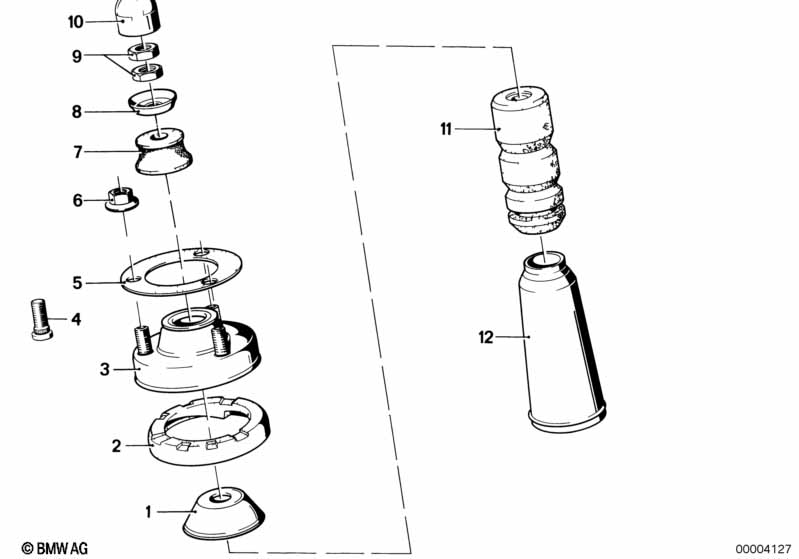

This Opěrné ložisko/pružná podložka/mont.díly technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Opěrný hrnec | 70MM | 2 | 33521118158 | $5.86 | Shop at ECS Tuning | ||||
| 02 | Tlumicí kroužek | 20MM | 2 | 33521114966 | $14.18 | Shop at ECS Tuning | ||||
| 02 | Tlumicí kroužek | 26MM | 2 | 33521118320 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Opěrné ložisko | 10,2X32,0X52,0 | 2 | 33521118134 | $18.71 | Shop at ECS Tuning | ||||
| 04 | Čep | M8X18 ZNS3 | 6 | 31336765744 | $1.17 | Shop at ECS Tuning | ||||
| 05 | Těsnění | 2 | 33521118479 | $5.92 | Shop at ECS Tuning | |||||
| 06 | Matice s nákružkem samojistící | M8-8-ZNS3 | 6 | 12/1982 | 07119904295 | $0.36 | Shop at ECS Tuning | |||
| 06 | Matice s nákružkem samojistící | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 07 | Pryžové ložisko | 2 | 33521120729 | Shop at ECS Tuning | ||||||
| 08 | Opěrný kotouč | 44MM | 2 | 33521117677 | $1.72 | Shop at ECS Tuning | ||||
| 09 | Šestihranná matice samojisticí | M10X1 | 4 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
| 10 | Ochranné víčko | 2 | 33521119067 | $2.10 | Shop at ECS Tuning | |||||
| 11 | Tlumič | 2 | 33521118793 | $19.11 | Shop at ECS Tuning | |||||
| 12 | Ochranná trubka | 2 | 33521114974 | $23.29 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
