Stabilizátor zadní for BMW 5 Series E12 518i (1981)

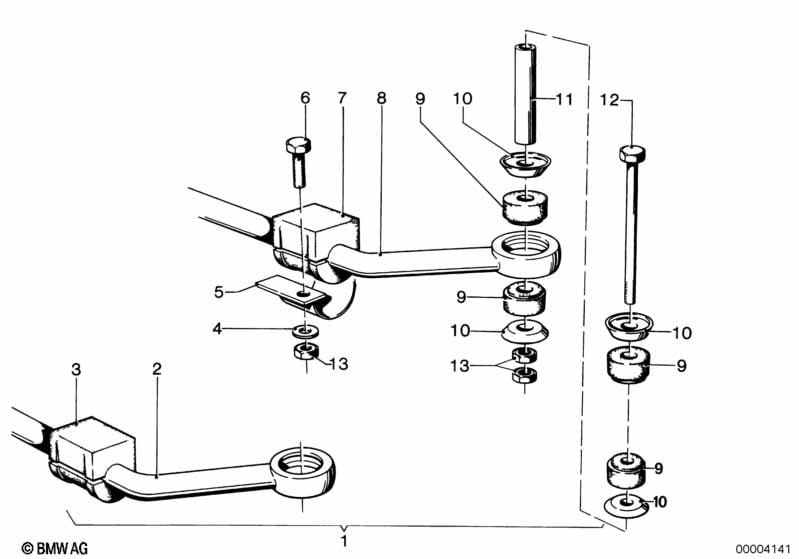

This Stabilizátor zadní technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Stabilizátor | D=22MM | 1 | 31351111423 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Pryžové ložisko | D=22MM | 2 | 31351118392 | $4.80 | Shop at ECS Tuning | ||||
| 04 | Podložka | 8,4X16X1,6-ZNNV | 4 | 07119907030 | Shop at ECS Tuning | |||||
| 05 | Spona stabilizátor | 2 | 31352654112 | $9.36 | Shop at ECS Tuning | |||||
| 06 | Šestihranný šroub | M8X16-10.9-PHR | 4 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Pryžové ložisko stabilizátor | D=16MM | 2 | 33551103492 | $11.60 | Shop at ECS Tuning | ||||
| 08 | Stabilizátor zadní | D=16MM | 1 | 33551123944 | $96.57 | Shop at ECS Tuning | ||||
| 09 | Pryžový kroužek | 8 | 31351125712 | $1.37 | Shop at ECS Tuning | |||||
| 10 | Talíř | 8 | 31351114570 | $3.59 | Shop at ECS Tuning | |||||
| 11 | Distanční objímka | 2 | 31352654108 | $4.68 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | Šestihranný šroub | M8X160 | 2 | 07119912595 | $3.47 | Shop at ECS Tuning | ||||
| 13 | Šestihranná matice | M8-8-ZNS3 | 8 | 07/1981 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 13 | Šestihranná matice | M8-8-ZNNIV SI | 8 | 07119905515 | $0.16 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
