Pruž. jedn. zadní-vinutá pružina/dod.díl for BMW 8 Series E31 840Ci (1996)

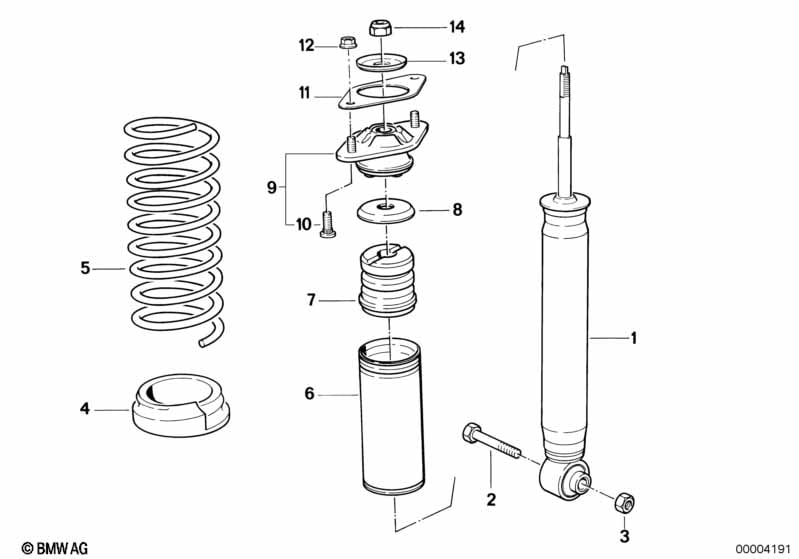

This Pruž. jedn. zadní-vinutá pružina/dod.díl technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tlumič nárazů zadní | 2 | 08/1991 | 33521139717 | $295.79 | Shop at ECS Tuning | ||||
| Pro vozidla s M Sportovní podvozek |
S704A=Ano |
|||||||||
| 01 | Tlumič nárazů zadní | 2 | 33521137474 | $355.71 | Shop at ECS Tuning | |||||
| Pro vozidla s Provedení Austrálie nebo Provedení pro země s teplým podnebím |
L810A=Ano S823A=Ano |
|||||||||
| 01 | Tlumič nárazů zadní | 2 | 33521137479 | $324.97 | Shop at ECS Tuning | |||||
| 02 | Šestihranný šroub | M12X1,5X85 | 2 | 07119914681 | $2.09 | Shop at ECS Tuning | ||||
| 03 | Šestihranná matice samojisticí | M12X1,5-10-PHR | 2 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Pružná podložka | 4 | 33531136696 | $8.88 | Shop at ECS Tuning | |||||
| 06 | Ochranná trubka | 2 | 33521134044 | $5.58 | Shop at ECS Tuning | |||||
| 07 | Přídavný tlumič zadní | 2 | 33531134043 | $22.90 | Shop at ECS Tuning | |||||
| 08 | Opěrný kotouč | 68MM | 2 | 33521129559 | $1.82 | Shop at ECS Tuning | ||||
| 09 | Opěrné ložisko | 2 | 33521091605 | $32.70 | Shop at ECS Tuning | |||||
| 10 | Čep | M8X18 ZNS3 | 4 | 31336765744 | $1.17 | Shop at ECS Tuning | ||||
| 12 | Matice s nákružkem samojistící | M8-8-ZNS3 | 4 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Matice s nákružkem samojistící | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| 13 | Opěrný kotouč | 55MM | 2 | 33521135195 | $1.67 | Shop at ECS Tuning | ||||
| 14 | Šestihranná matice samojisticí | M10X1 | 2 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
