Regulace světlé výšky/vedení zadní for BMW 5 Series E34 525ix (1996)

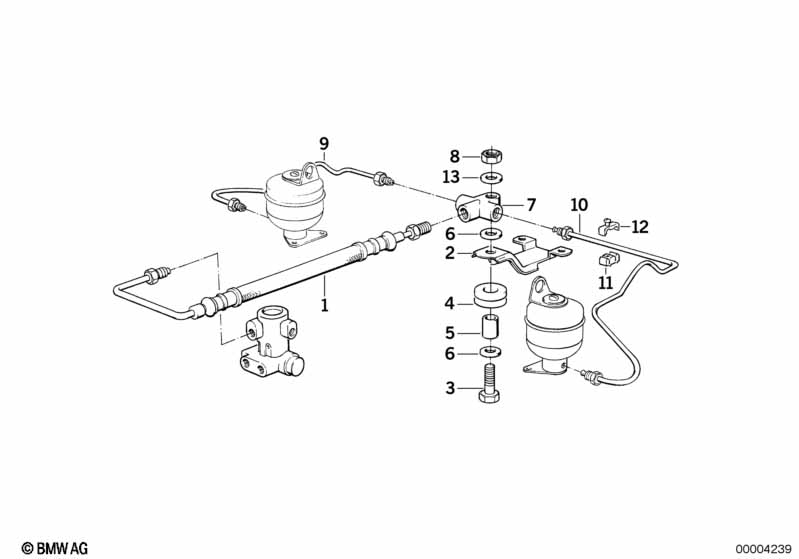

This Regulace světlé výšky/vedení zadní technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hadicové vedení | 1 | 09/1993 | 37131136597 | $56.22 | Shop at ECS Tuning | ||||
| 02 | Uchycení | 1 | 09/1993 | 37121132038 | $2.68 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Šestihranný šroub | M6X40 | 1 | 09/1993 | 07119912310 | $0.43 | Shop at ECS Tuning | |||
| 04 | Pryžová průchodka | 1 | 09/1993 | 37211119643 | $1.45 | Shop at ECS Tuning | ||||
| 05 | Distanční pouzdro | 12MM | 1 | 09/1993 | 37211119062 | $3.37 | Shop at ECS Tuning | |||
| 06 | Podložka | 6,4X25X1,5 | 2 | 09/1993 | 07146977329 | $0.64 | Shop at ECS Tuning | |||
| 07 | Rozdělovač | M10X1 | 1 | 09/1993 | 34341111435 | $8.08 | UKONČENO | Shop at ECS Tuning | ||
| 08 | Šestihranná matice samojisticí | M6 ZNNIV SI | 1 | 09/1993 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
| 09 | Trubkové vedení | M10/M10-829MM | X | 09/1993 | 34326755594 | $8.65 | Shop at ECS Tuning | |||
| 10 | Trubkové vedení | M10/M10-420MM | X | 09/1993 | 34326755571 | $7.60 | Shop at ECS Tuning | |||
| 11 | Pryžový doraz | X | 09/1993 | 37131131811 | $2.25 | Shop at ECS Tuning | ||||
| 12 | Třmen | X | 09/1993 | 37131131808 | $0.92 | Shop at ECS Tuning | ||||
| 13 | Podložka | A6,4-ZNNIV SI | 1 | 09/1993 | 07119904202 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
