Zadní vidlice jednotlivé díly for BMW R45-R65LS..78-85 R65LS (1983)

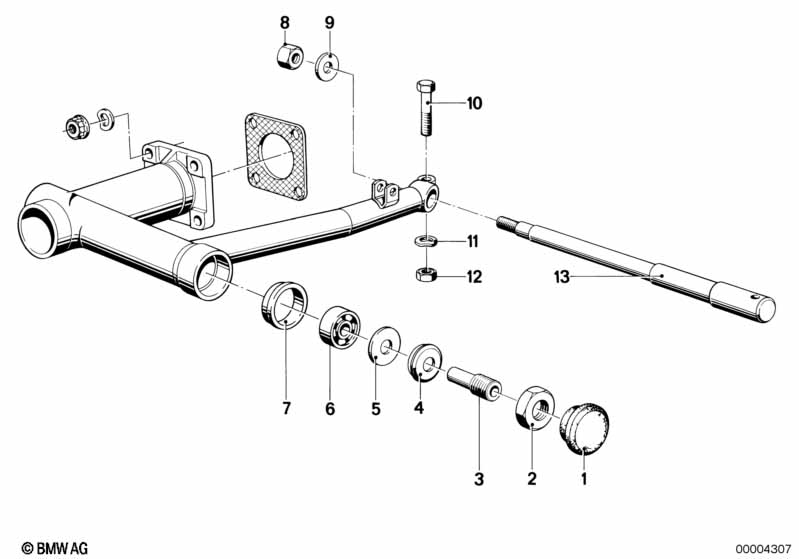

This Zadní vidlice jednotlivé díly technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Uzavírací víčko | 2 | 33171230296 | $3.71 | Shop at ECS Tuning | |||||
| 02 | Šestihranná matice | 2 | 33533054174 | $8.25 | Shop at ECS Tuning | |||||
| 03 | Ložiskový čep | L=42,5MM | 2 | 33171236955 | $44.52 | Shop at ECS Tuning | ||||
| 07 | Krycí kotouč | 2 | 33171239812 | $2.75 | Shop at ECS Tuning | |||||
| 08 | Šestihranná matice | M14X1,5 | 1 | 07119901309 | $1.65 | Shop at ECS Tuning | ||||
| 09 | Podložka | 1 | 09/1980 | 33411239504 | $6.64 | Shop at ECS Tuning | ||||
| 10 | Šroub s válcovou hlavou | M8X35-10.9-ZNS3 | 1 | 07119906650 | $0.87 | Shop at ECS Tuning | ||||
| 11 | Pružná podložka | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Šestihranná matice | M8-8-ZNS3 | 1 | 07/1985 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 12 | Šestihranná matice | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 13 | Zástrčná hřídel | 1 | 33411241728 | $73.05 | Shop at ECS Tuning |
