Pružicí jednotka zadní for BMW R45-R65LS..78-85 R65LS (1983)

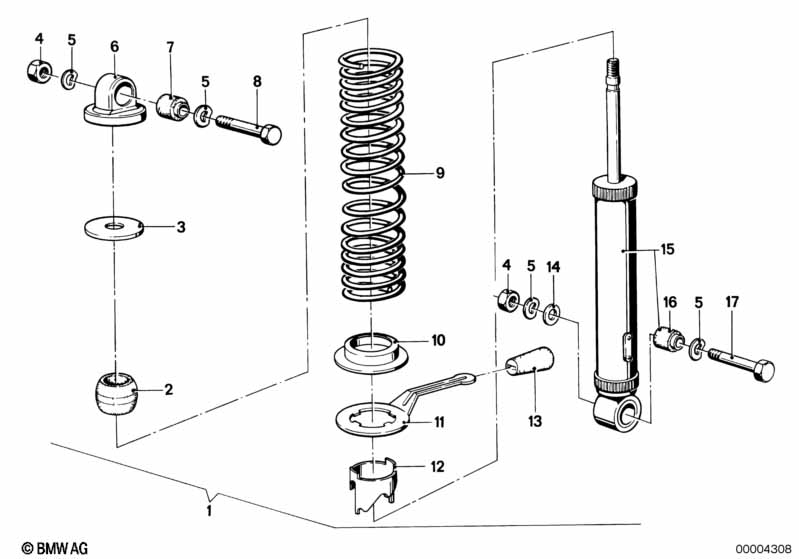

This Pružicí jednotka zadní technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pružicí jednotka zadní levá | 1 | 33531237227 | $304.30 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 01 | Pružicí jednotka zadní pravá | 1 | 33531237228 | $304.30 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 01 | Pružicí jednotka zadní levá | HD | 1 | 33531237505 | $304.30 | +core | Shop at ECS Tuning | |||
| 01 | Pružicí jednotka zadní pravá | HD | 1 | 33531237506 | $304.30 | +core | Shop at ECS Tuning | |||
| 02 | Doraz | 2 | 33531230280 | $1.73 | Shop at ECS Tuning | |||||
| 04 | Šestihranná matice | M10X1 | 4 | 07/1985 | 07119900079 | $0.88 | UKONČENO | Shop at ECS Tuning | ||
| 04 | Šestihranná matice | M10X1 FLACH | 4 | 07119901301 | $0.33 | Shop at ECS Tuning | ||||
| 04 | Šestihranná matice samojisticí | M10X1 | 4 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
| 04 | Šestihranná matice | M10-8-ZNS | 3 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 05 | Pružná podložka | B10-ZNS | 7 | 07/1985 | 07119932122 | $0.38 | UKONČENO | Shop at ECS Tuning | ||
| 05 | Pružná podložka | B10-ZNS3 | 7 | 07119904463 | Shop at ECS Tuning | |||||
| 06 | Oko pružicí jednotky | 2 | 33532301595 | $10.67 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Pryžové ložisko | 2 | 33532301586 | $19.86 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Oko pružicí jednotky | 2 | 33532301595 | $10.67 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Šestihranný šroub | M10X45-8.8-ZNS3 | 2 | 07119901169 | $2.36 | UKONČENO | Shop at ECS Tuning | |||
| 09 | Tlačná pružina | 2 | 33531237286 | $41.89 | Shop at ECS Tuning | |||||
| 09 | Tlačná pružina | HD | 2 | 33531237586 | +core | Shop at ECS Tuning | ||||
| 10 | Vodicí kroužek | 2 | 33531230282 | $6.50 | Shop at ECS Tuning | |||||
| 11 | Západková páka | 2 | 33531230363 | $20.04 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | Catch, left | 1 | 33531230272 | $54.25 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | Catch, right | 1 | 33531230273 | $54.25 | UKONČENO | Shop at ECS Tuning | ||||
| 13 | Rukojeť | 2 | 33531230359 | $2.86 | UKONČENO | Shop at ECS Tuning | ||||
| 15 | Tlumič nárazů odpruž.pro těž.provoz zad. | 2 | 33531237289 | $163.05 | +core | Shop at ECS Tuning | ||||
| 15 | Tlumič nárazů zadní | 290-360 KP | 2 | 33531240647 | $160.95 | UKONČENO, +core | Shop at ECS Tuning | |||
| 16 | Pryžové ložisko | 2 | 33531230258 | $38.45 | Shop at ECS Tuning | |||||
| 17 | Šestihranný šroub | 1 | 33531230249 | $2.20 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R65LS Pružicí jednotka zadní?
- This technical diagram illustrates the Pružicí jednotka zadní within the Zadní náprava, pohon, vedení zadn. kola group for the R45-R65LS..78-85 R65LS produced during 1983. It provides a detailed exploded view of the components, identifying key parts such as the Pružicí jednotka zadní levá (Part #33531237227).
- Which models use the hardware listed in this Pružicí jednotka zadní?
- The hardware and components featured in the Pružicí jednotka zadní are specific to the R45-R65LS..78-85 R65LS produced during 1983. These technical specifications ensure that parts like the Pružicí jednotka zadní levá (33531237227) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pružicí jednotka zadní assembly?
- Each item in the Pružicí jednotka zadní corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R65LS, you can identify the Pružicí jednotka zadní levá by locating its position on the schematic, which then links to the official BMW part number 33531237227 for the Zadní náprava, pohon, vedení zadn. kola section.
