Zadní rozvodovka-pouzdro/víko for BMW 1502-2002tii 2002 (1975)

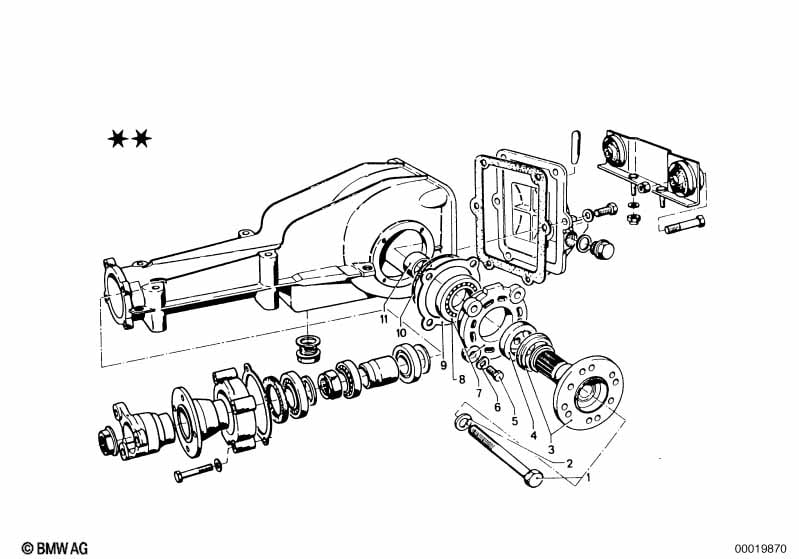

This Zadní rozvodovka-pouzdro/víko technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Šestihranný šroub | M12X1,5X100 | 2 | 07119914670 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Okno | 2 | 11110502202 | UKONČENO | Shop at ECS Tuning | |||||
| 03 | Unášecí příruba výstup | 2 | 33131200614 | $176.00 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Hřídelový těsnicí kroužek | 54X38X10 | 2 | 33121205302 | Shop at ECS Tuning | |||||
| 05 | Šestihranný šroub | M8X25-8.8-ZNNIV | 8 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 06 | Pružná podložka | 8,4X15-ZNS3 | 8 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Ložiskové víko | 2 | 33111200066 | $153.44 | Shop at ECS Tuning | |||||
| 08 | Kuželíkové ložisko | 41,2X73,4X19,5 | 2 | 33131205117 | Shop at ECS Tuning | |||||
| 09 | Vymezovací podložka | 0,280MM | X | 33133604215 | $12.45 | UKONČENO | Shop at ECS Tuning | |||
| 09 | Vymezovací podložka | 0,380MM | X | 33133604216 | $12.45 | UKONČENO | Shop at ECS Tuning | |||
| 09 | Vymezovací podložka | 0,500MM | X | 33133604217 | $3.50 | UKONČENO | Shop at ECS Tuning | |||
| 09 | Vymezovací podložka | 0,630MM | X | 33133604218 | $3.50 | Shop at ECS Tuning | ||||
| 09 | Vymezovací podložka | 0,880MM | X | 33133604220 | $3.53 | UKONČENO | Shop at ECS Tuning | |||
| 09 | Vymezovací podložka | 0,100MM | X | 33133604221 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Vymezovací podložka | 0,150MM | X | 33133604222 | $1.74 | UKONČENO | Shop at ECS Tuning | |||
| 10 | O-kroužek | 81X2 | 2 | 33113604119 | $3.06 | UKONČENO | Shop at ECS Tuning | |||
| 11 | Distanční trubka | 16,5MM | X | 33133604171 | $6.21 | Shop at ECS Tuning | ||||
| 11 | Distanční trubka | 16,5MM | X | 33133604171 | $6.21 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
