Zadní rozvodovka-pouzdro/víko for BMW 1502-2002tii 2002 (1975)

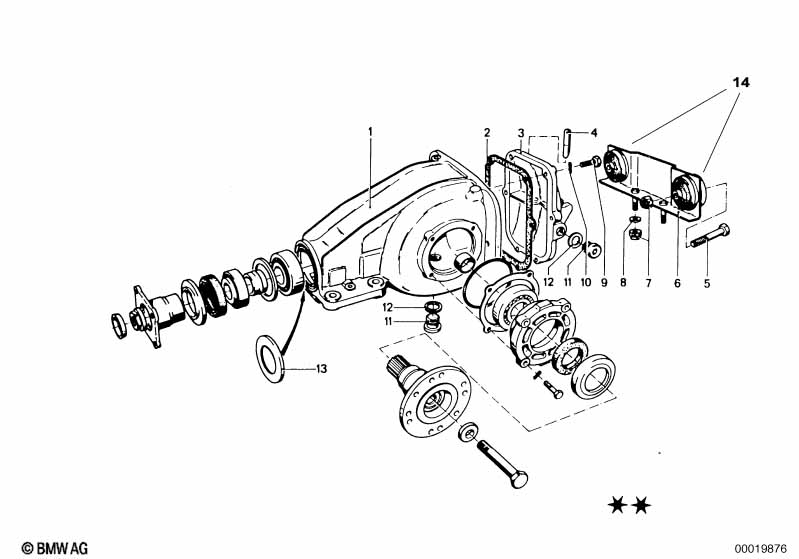

This Zadní rozvodovka-pouzdro/víko technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Skříň převodovky | 1 | 03/1966 | 07/1977 | 33111206175 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Těsnění bez azbestu | 1 | 33113604117 | $3.05 | Shop at ECS Tuning | |||||
| 03 | Víko převodovky | 1 | 33111204102 | $287.00 | Shop at ECS Tuning | |||||
| 04 | Odvzdušňovací potrubí | 1 | 33111205275 | UKONČENO | Shop at ECS Tuning | |||||
| 05 | Šestihranný šroub | M10X60 | 2 | 07119921502 | $1.18 | Shop at ECS Tuning | ||||
| 05 | Šestihranný šroub | M10X60-10.9ZNS3 | 2 | 07119905162 | $1.78 | Shop at ECS Tuning | ||||
| 06 | Příčný držák | 1 | 33173404100 | $92.70 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Šestihranná matice samojisticí | M10 | 2 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Podložka | A10,5 | 2 | 07119931096 | $0.22 | Shop at ECS Tuning | ||||
| 09 | Šestihranný šroub | M10X28 | 6 | 07119913836 | $0.63 | Shop at ECS Tuning | ||||
| 10 | Pružná podložka | B10-ZNS3 | 6 | 07119904463 | Shop at ECS Tuning | |||||
| 11 | Šroubový uzávěr s O-kroužkem | M22X1,5-ZNS3 | 2 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| 12 | Těsnicí kroužek | A22X27-AL | 2 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 13 | Kroužek | 1 | 33121204444 | $5.90 | Shop at ECS Tuning | |||||
| 14 | Pryžové ložisko | 2 | 33171104266 | $40.21 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
