Držák zadní nápravy for BMW 5 Series E34 518i (1995)

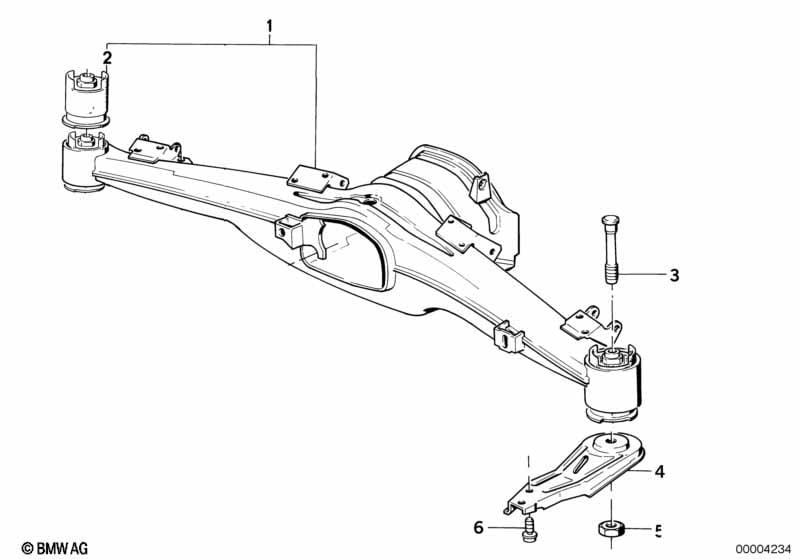

This Držák zadní nápravy technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Držák zadní nápravy | 1 | 09/1991 | 33311133551 | $856.53 | Shop at ECS Tuning | ||||
| 02 | Pryžové ložisko | 2 | 09/1991 | 33311128670 | $54.46 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Rýhovaný čep | M14X170,6 | 2 | 09/1991 | 51718181460 | $6.63 | Shop at ECS Tuning | |||
| 04 | Suvná vzpěra levá | 1 | 09/1991 | 33321130351 | $33.91 | Shop at ECS Tuning | ||||
| 04 | Suvná vzpěra pravá | 1 | 09/1991 | 33321130352 | $33.91 | Shop at ECS Tuning | ||||
| 05 | Matice s nákružkem | M14X1,5 | 2 | 09/1991 | 33331126136 | $1.93 | Shop at ECS Tuning | |||
| 06 | Šestihranný šroub s podložkou | M8X20-Z1 | 4 | 09/1991 | 01/1996 | 07119915093 | $0.47 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 518i Držák zadní nápravy?
- This technical diagram illustrates the Držák zadní nápravy within the Zadní náprava group for the 5 Series E34 518i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Držák zadní nápravy (Part #33311133551).
- Which models use the hardware listed in this Držák zadní nápravy?
- The hardware and components featured in the Držák zadní nápravy are specific to the 5 Series E34 518i produced during 1995. These technical specifications ensure that parts like the Držák zadní nápravy (33311133551) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Držák zadní nápravy assembly?
- Each item in the Držák zadní nápravy corresponds to the numbered list below the illustration. For the 5 Series E34 518i, you can identify the Držák zadní nápravy by locating its position on the schematic, which then links to the official BMW part number 33311133551 for the Zadní náprava section.
