Snímač regulace sklonu světlometů for BMW MINI Paceman R61 Cooper

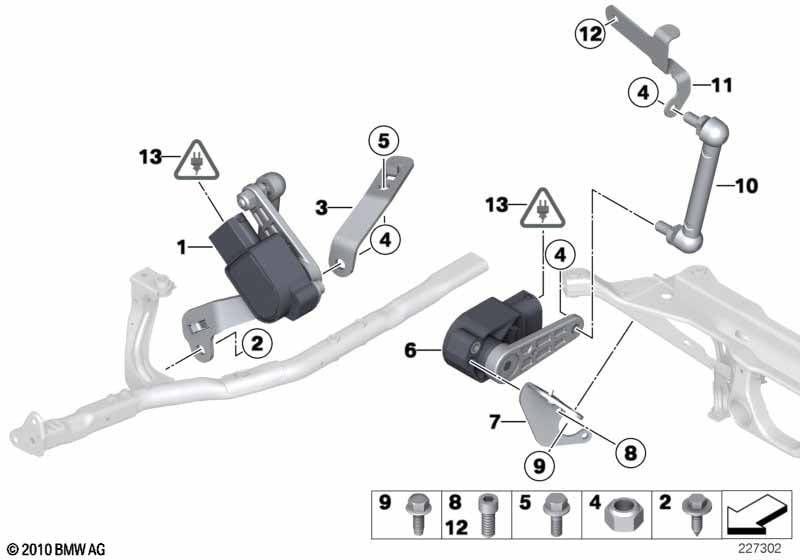

This Snímač regulace sklonu světlometů technical drawing provides a detailed breakdown of the assembly for the MINI Paceman R61 Cooper. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Xenonová světla |
S522A=Ano |
||||||||
| 01 | Výškový snímač přední | 1 | 37142287955 | Shop at ECS Tuning | ||||||
| 02 | Šroub samořezný | M6X16MM | 1 | 07131025735 | $1.05 | Shop at ECS Tuning | ||||
| 03 | Držák regulační tyč pravý | 1 | 37149806683 | Shop at ECS Tuning | ||||||
| 04 | Šestihranná matice samojisticí | M6 ZNNIV SI | 4 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Šestihranný šroub | M6X16-8.8-ZNS3 | 1 | 07119904371 | $0.16 | Shop at ECS Tuning | ||||
| 06 | Výškový snímač | 1 | 37146853753 | Shop at ECS Tuning | ||||||
| 07 | Držák výškový snímač zadní | 1 | 37149800073 | Shop at ECS Tuning | ||||||
| 08 | Šroub s válcovou hlavou | M5X10-8.8-ZNNIV | 2 | 07119904303 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Šroub samořezný | M6X16 ZNS3 | 1 | 07136801211 | $0.53 | Shop at ECS Tuning | ||||
| 10 | Regulační tyč | 1 | 37146766779 | $6.98 | Shop at ECS Tuning | |||||
| 11 | Držák regulační tyč pravý | 1 | 37149800075 | Shop at ECS Tuning | ||||||
| 12 | Isa-šroub | M6X16-8.8-ZNNIV | 1 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
