Kardanový hřídel for BMW R45-R65LS..78-85 R65LS (1983)

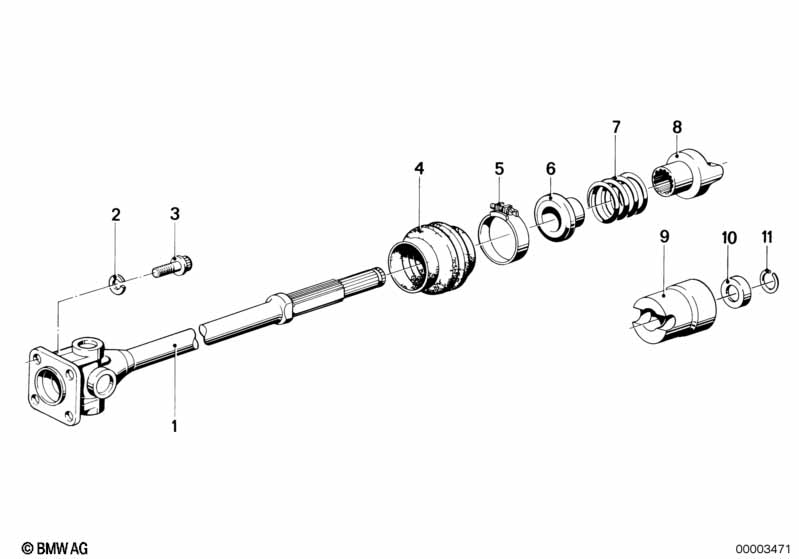

This Kardanový hřídel technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kardanový hřídel | 1 | 09/1980 | 26111241825 | $542.43 | +core | Shop at ECS Tuning | |||
| 03 | Dvanáctihranný šroub | M8X1X13-10.9 | 4 | 09/1980 | 26111242297 | $2.58 | Shop at ECS Tuning | |||
| 04 | Pryžový měch | 1 | 33171230304 | $24.64 | Shop at ECS Tuning | |||||
| 05 | Upínací pás | D=83MM | 2 | 33171458346 | $10.75 | Shop at ECS Tuning | ||||
| 06 | Kroužek | 1 | 26111237185 | $31.75 | Shop at ECS Tuning | |||||
| 07 | Spirálová pružina | 1 | 26111237184 | $31.18 | Shop at ECS Tuning | |||||
| 08 | Tlačný prvek | 1 | 26111237183 | $51.86 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Skříň spojky | 1 | 26111237187 | $216.28 | +core | Shop at ECS Tuning | ||||
| 10 | Kroužek | 1 | 26111237188 | $7.93 | Shop at ECS Tuning | |||||
| 11 | Rozpěrný kroužek | 1 | 26111237189 | $8.94 | UKONČENO | Shop at ECS Tuning |
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R65LS Kardanový hřídel?
- This technical diagram illustrates the Kardanový hřídel within the Zadní náprava, pohon, vedení zadn. kola group for the R45-R65LS..78-85 R65LS produced during 1983. It provides a detailed exploded view of the components, identifying key parts such as the Kardanový hřídel (Part #26111241825).
- Which models use the hardware listed in this Kardanový hřídel?
- The hardware and components featured in the Kardanový hřídel are specific to the R45-R65LS..78-85 R65LS produced during 1983. These technical specifications ensure that parts like the Kardanový hřídel (26111241825) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Kardanový hřídel assembly?
- Each item in the Kardanový hřídel corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R65LS, you can identify the Kardanový hřídel by locating its position on the schematic, which then links to the official BMW part number 26111241825 for the Zadní náprava, pohon, vedení zadn. kola section.
