Vzpěra MacPh.vzadu var.říz.tlum./ říd.j. for BMW 5 Series G30 530iX (2020)

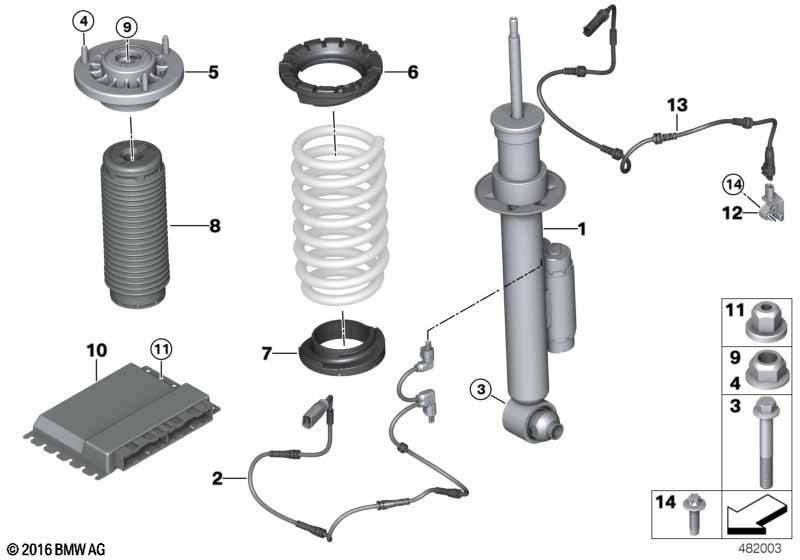

This Vzpěra MacPh.vzadu var.říz.tlum./ říd.j. technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 530iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Adaptivní podvozek nebo Adaptivní pohon nebo Adaptivní M podvozek nebo Adaptivní podvozek M Professional |
S223A=Ano S2VAA=Ano S2VFA=Ano S2VWA=Ano |
||||||||
| 01 | Vzpěra McPherson zadní levá EDC | 1 | 37106886887 | Shop at ECS Tuning | ||||||
| 01 | Vzpěra MacPherson pravá VDC | 1 | 37106886888 | Shop at ECS Tuning | ||||||
| 02 | Kabel k adaptéru EDC vzadu vlevo | 1 | 37106869521 | Shop at ECS Tuning | ||||||
| 02 | Kabel k adaptéru EDC vzadu vpravo | 1 | 37106869522 | Shop at ECS Tuning | ||||||
| 03 | Šestihranný šroub s podložkou | M16X1,5X110 | 2 | 07119907031 | $4.80 | Shop at ECS Tuning | ||||
| 04 | Matice s nákružkem samojistící | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 05 | Opěrné ložisko | 2 | 33506866272 | Shop at ECS Tuning | ||||||
| 06 | Pružná podložka horní | 2 | 33536866783 | Shop at ECS Tuning | ||||||
| 07 | Pružná podložka dolní | 2 | 33536866784 | Shop at ECS Tuning | ||||||
| 09 | Šestihranná matice s přírubou | M10X1-8-ZNS3 | 2 | 07119907135 | Shop at ECS Tuning | |||||
| 10 | Řídící jednotka VDP | 1 | 07/2021 | 37148835391 | UKONČENO | Shop at ECS Tuning | ||||
| 10 | Řídící jednotka VDP | 1 | 07/2022 | 37148845511 | Shop at ECS Tuning | |||||
| 10 | Řídicí jednotka VDP | HIGH | 1 | 07/2023 | 37148858489 | Shop at ECS Tuning | ||||
| 10 | Řídicí jednotka VDP | HIGH | 1 | 31148867445 | Shop at ECS Tuning | |||||
| 11 | Plastová matice čep s hrubým závitem | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 12 | Čidlo zrychlení | 2 | 37146861319 | Shop at ECS Tuning | ||||||
| 13 | Kabel snímač zrychlení kola | 2 | 37146861346 | Shop at ECS Tuning | ||||||
| 14 | Šroub Torx | 2 | 11127624088 | Shop at ECS Tuning | ||||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 530iX Vzpěra MacPh.vzadu var.říz.tlum./ říd.j.?
- This technical diagram illustrates the Vzpěra MacPh.vzadu var.říz.tlum./ říd.j. within the Zadní náprava group for the 5 Series G30 530iX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Vzpěra McPherson zadní levá EDC (Part #37106886887).
- Which models use the hardware listed in this Vzpěra MacPh.vzadu var.říz.tlum./ říd.j.?
- The hardware and components featured in the Vzpěra MacPh.vzadu var.říz.tlum./ říd.j. are specific to the 5 Series G30 530iX produced during 2020. These technical specifications ensure that parts like the Vzpěra McPherson zadní levá EDC (37106886887) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vzpěra MacPh.vzadu var.říz.tlum./ říd.j. assembly?
- Each item in the Vzpěra MacPh.vzadu var.říz.tlum./ říd.j. corresponds to the numbered list below the illustration. For the 5 Series G30 530iX, you can identify the Vzpěra McPherson zadní levá EDC by locating its position on the schematic, which then links to the official BMW part number 37106886887 for the Zadní náprava section.
