Zadní rozvodovka, tlumič for BMW 3 Series F34 GT 320d

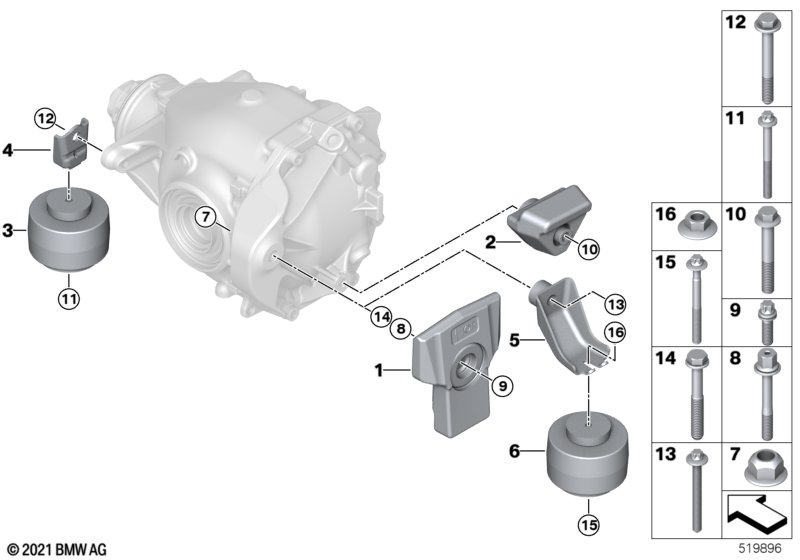

This Zadní rozvodovka, tlumič technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT 320d. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tlumič vibrací | 40HZ | 1 | 33316798890 | Shop at ECS Tuning | |||||
| 07 | Matice s nákružkem samojistící | M14X1,5-10 ZNS3 | 1 | 33306760349 | $1.33 | Shop at ECS Tuning | ||||
| 08 | Maticový šroub | M14X1,5X110 | 1 | 33176799183 | Shop at ECS Tuning | |||||
| 09 | Šroub s válc.hlavou s vnit.šestihranem | BM8X30-U1-10.9- | 1 | 07119908584 | Shop at ECS Tuning | |||||
| 12 | Šestihranný šroub s podložkou | M12X1,5X100 | 2 | 33176760343 | $2.05 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F34 GT 320d Zadní rozvodovka, tlumič?
- This technical diagram illustrates the Zadní rozvodovka, tlumič within the Zadní náprava group for the 3 Series F34 GT 320d. It provides a detailed exploded view of the components, identifying key parts such as the Tlumič vibrací (Part #33316798890).
- Which models use the hardware listed in this Zadní rozvodovka, tlumič?
- The hardware and components featured in the Zadní rozvodovka, tlumič are specific to the 3 Series F34 GT 320d. These technical specifications ensure that parts like the Tlumič vibrací (33316798890) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zadní rozvodovka, tlumič assembly?
- Each item in the Zadní rozvodovka, tlumič corresponds to the numbered list below the illustration. For the 3 Series F34 GT 320d, you can identify the Tlumič vibrací by locating its position on the schematic, which then links to the official BMW part number 33316798890 for the Zadní náprava section.
