Držák zadní nápravy for BMW 5 Series G61 Touring 520d

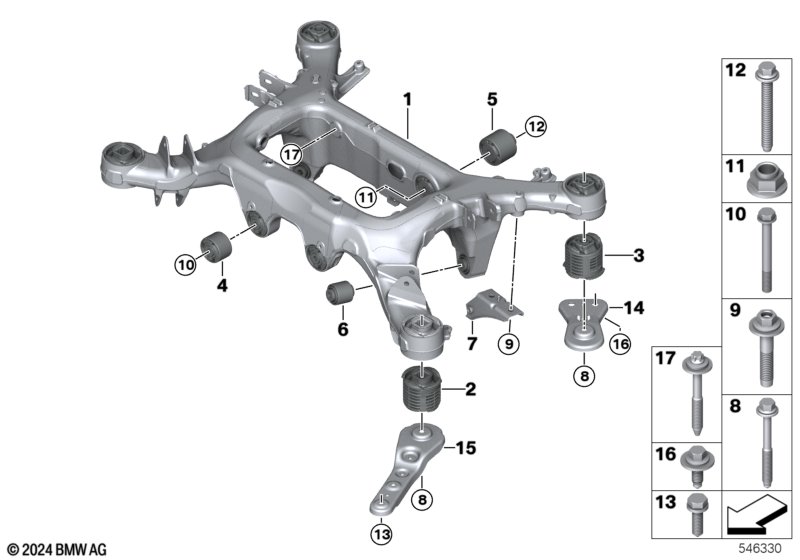

This Držák zadní nápravy technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520d. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Držák zadní nápravy | 1 | 33318831013 | NoS | Shop at ECS Tuning | |||||
| 02 | Pryžové ložisko vpředu | 2 | 33336898293 | Shop at ECS Tuning | ||||||
| 03 | Pryžové ložisko | 2 | 33336898295 | Shop at ECS Tuning | ||||||
| 04 | Pryžové ložisko přední | 2 | 33176897624 | Shop at ECS Tuning | ||||||
| 05 | Pryžové ložisko zadní | 1 | 33176897625 | Shop at ECS Tuning | ||||||
| 06 | Pryžové ložisko | 2 | 33306871022 | Shop at ECS Tuning | ||||||
| Pro vozidla s Adaptivní podvozek Professional |
S2VVA=Ne |
|||||||||
| 07 | Konzola uložení levá | 1 | 33318832027 | Shop at ECS Tuning | ||||||
| 07 | Konzola uložení pravá | 1 | 33318832028 | Shop at ECS Tuning | ||||||
| 08 | Šestihranný šroub s podložkou | M14X1,5X148 | 4 | 33326775040 | $5.28 | Shop at ECS Tuning | ||||
| Pro vozidla s Adaptivní podvozek Professional |
S2VVA=Ne |
|||||||||
| 09 | Šroub samořezný | M14X1,5X75-10.9 | 4 | 31106850776 | Shop at ECS Tuning | |||||
| 10 | Šestihranný šroub s podložkou | M12X1,5X110 | 2 | 07119906460 | Shop at ECS Tuning | |||||
| 11 | Šestihranná matice | M14X1.5-10 | 1 | 07148854416 | Shop at ECS Tuning | |||||
| 12 | Šestihranný šroub s podložkou | M14X1,5X133ZNS3 | 1 | 33176760336 | $8.88 | Shop at ECS Tuning | ||||
| 13 | Šestihranný šroub s podložkou | M10X35 | 4 | 31106861942 | Shop at ECS Tuning | |||||
| 14 | Suvná vzpěra zadní | 2 | 33301543441 | NoS | Shop at ECS Tuning | |||||
| 15 | Suvná vzpěra vpředu | 2 | 33301543442 | NoS | Shop at ECS Tuning | |||||
| 16 | Šestihranný šroub | M10X25.10.9.ZNS | 4 | 51619908657 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Díl není centrálně skladován.)
