Bubn. brzda-brzd.buben/brzd.válec kola for BMW 3 Series E21 320 (1979)

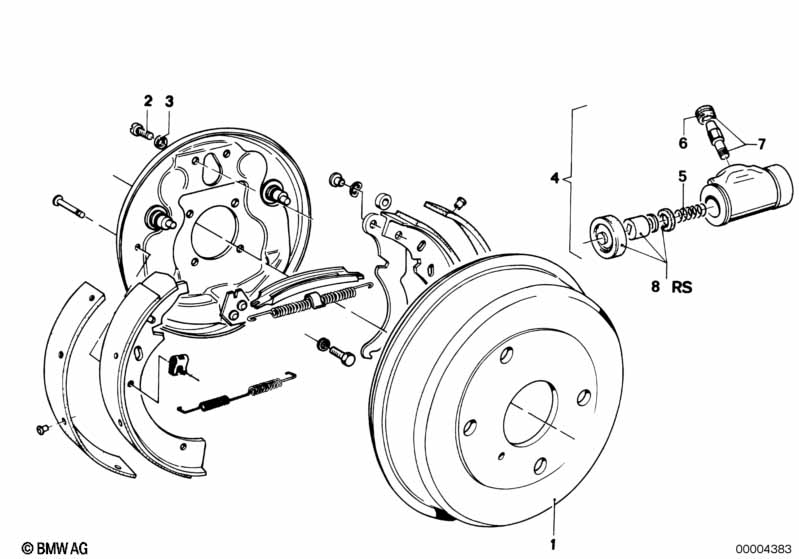

This Bubn. brzda-brzd.buben/brzd.válec kola technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brzdový buben | D=250 | 2 | 34216752373 | $108.83 | Shop at ECS Tuning | ||||
| 02 | Šestihranný šroub | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 03 | Pružný kroužek | B6 | 4 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Brzdový válec kola | D=19,05MM | 2 | 34211117104 | $129.75 | UKONČENO | Shop at ECS Tuning | |||
| 05 | Tlačná pružina | 2 | 34212061731 | $1.22 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Prachovka | 2 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 07 | Odvzdušňovací ventil | 2 | 34219023168 | $8.13 | Shop at ECS Tuning | |||||
| 08 | Sada těsnění brzdový válec kola | 2 | 34211117344 | $87.11 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Bubn. brzda-brzd.buben/brzd.válec kola?
- This technical diagram illustrates the Bubn. brzda-brzd.buben/brzd.válec kola within the Brzdy group for the 3 Series E21 320 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Brzdový buben (Part #34216752373).
- Which models use the hardware listed in this Bubn. brzda-brzd.buben/brzd.válec kola?
- The hardware and components featured in the Bubn. brzda-brzd.buben/brzd.válec kola are specific to the 3 Series E21 320 produced during 1979. These technical specifications ensure that parts like the Brzdový buben (34216752373) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bubn. brzda-brzd.buben/brzd.válec kola assembly?
- Each item in the Bubn. brzda-brzd.buben/brzd.válec kola corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Brzdový buben by locating its position on the schematic, which then links to the official BMW part number 34216752373 for the Brzdy section.
