Bubn. brzda-brzd.buben/brzd.válec kola for BMW 5 Series E12 518 (1976)

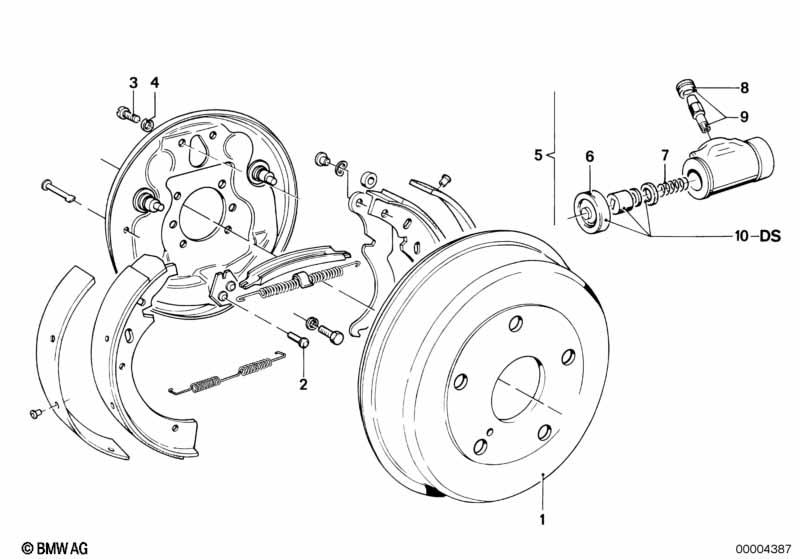

This Bubn. brzda-brzd.buben/brzd.válec kola technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brzdový buben | D=250MM | 2 | 34211158559 | $102.85 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Nýt | 8X28 | 4 | 07119947214 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Šestihranný šroub | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 04 | Pružná podložka černá | B6-ZN | 4 | 07/1981 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 04 | Podložka | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Brzdový válec kola | D=22,20MM | 2 | 34211103392 | $113.95 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Sada prachovka | 4 | 34213061733 | $3.91 | Shop at ECS Tuning | |||||
| 07 | Tlačná pružina | 2 | 34212061731 | $1.22 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Prachovka | 2 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 09 | Odvzdušňovací ventil | 2 | 34219023168 | $8.13 | Shop at ECS Tuning | |||||
| 10 | Sada těsnění brzdový válec kola | ATE 22,20MM | 2 | 34211103288 | $50.18 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
