Brzdové potrubí zadní for BMW 6 Series E24 633CSi

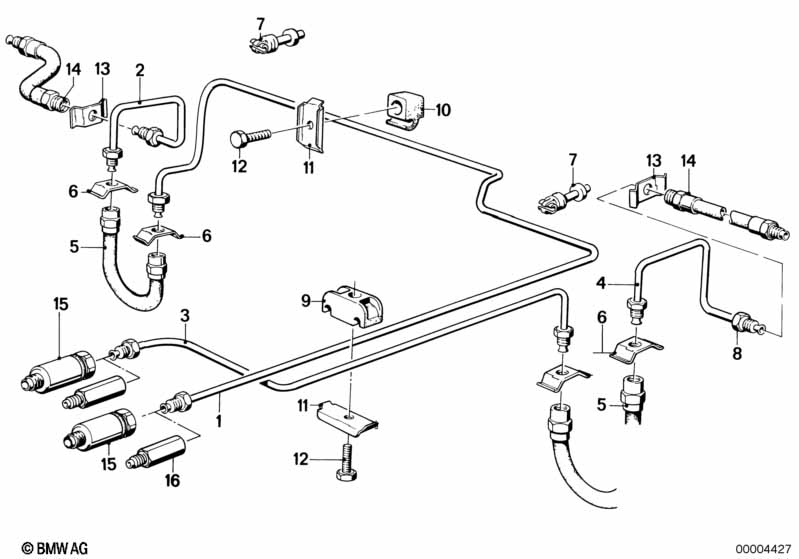

This Brzdové potrubí zadní technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Okruh 1 | ||||||||||
| 01 | Trubkové vedení | M10/M10-3315MM | 1 | 09/1982 | 34326755695 | $17.08 | Shop at ECS Tuning | |||
| 02 | Trubkové vedení | M10/M10-470MM | 1 | 09/1982 | 34326755576 | $7.60 | Shop at ECS Tuning | |||
| Okruh 2 | ||||||||||
| 03 | Trubkové vedení | M10/M10-3075MM | 1 | 09/1982 | 34326755684 | $17.08 | Shop at ECS Tuning | |||
| 04 | Trubkové vedení | M10/M10-470MM | 1 | 09/1982 | 34326755576 | $7.60 | Shop at ECS Tuning | |||
| 05 | Brzdová hadice zadní | L=222MM | 2 | 09/1982 | 34321159878 | $38.29 | Shop at ECS Tuning | |||
| 06 | Přídržné péro | 4 | 09/1982 | 34341163565 | $0.97 | Shop at ECS Tuning | ||||
| 07 | Svorka | 2 | 09/1982 | 34321238089 | $0.78 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Přesuvný šroub | M10X1 | 8 | 09/1982 | 34321151806 | $1.22 | UKONČENO | Shop at ECS Tuning | ||
| 09 | Spona | X | 09/1982 | 34321108212 | $2.70 | Shop at ECS Tuning | ||||
| 10 | Spona | 1 | 09/1982 | 34321108210 | $0.60 | Shop at ECS Tuning | ||||
| 11 | Uchycení | X | 09/1982 | 34321155062 | $0.60 | Shop at ECS Tuning | ||||
| 12 | Řezný šroub | X | 09/1982 | 34321119239 | $0.27 | Shop at ECS Tuning | ||||
| 13 | Přídržné péro | 2 | 09/1982 | 34341163565 | $0.97 | Shop at ECS Tuning | ||||
| 14 | Brzdová hadice zadní | L=200MM | 2 | 09/1982 | 34321159881 | $30.11 | Shop at ECS Tuning | |||
| 15 | Regulátor brzdného tlaku | 2 | 09/1982 | 34331154025 | $93.57 | Shop at ECS Tuning | ||||
