Brzdové potrubí přední ABS for BMW 5 Series E28 520i (1987)

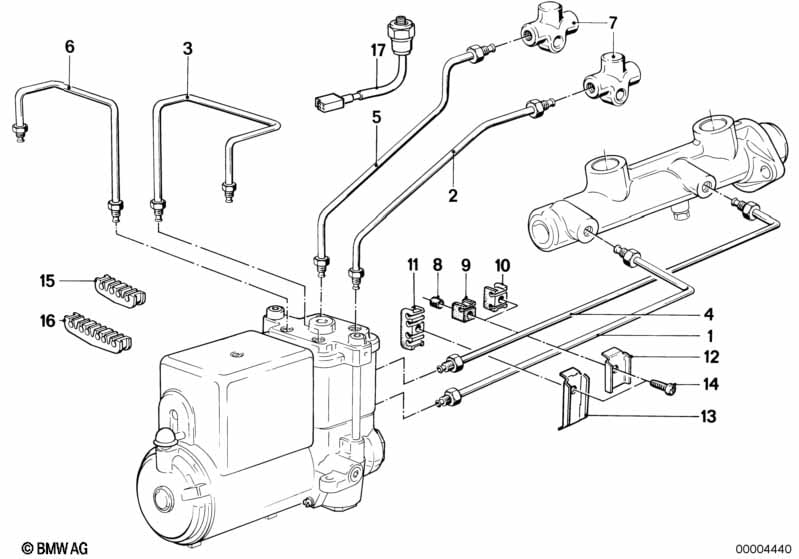

This Brzdové potrubí přední ABS technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Okruh 1 | ||||||||||
| 01 | Trubkové vedení | M10/M10-2200MM | 1 | 34326755656 | $8.97 | Shop at ECS Tuning | ||||
| 02 | Trubkové vedení | M10/M10-2224MM | 1 | 34326755657 | $15.74 | Shop at ECS Tuning | ||||
| 03 | Trubkové vedení | M10/M10-2235MM | 1 | 34326755658 | $17.08 | Shop at ECS Tuning | ||||
| Okruh 2 | ||||||||||
| 04 | Trubkové vedení | M10/M10-2200MM | 1 | 34326755656 | $8.97 | Shop at ECS Tuning | ||||
| 05 | Trubkové vedení | M10/M10-2074MM | 1 | 34326755651 | $10.03 | Shop at ECS Tuning | ||||
| 06 | Trubkové vedení | M10/M10-1080MM | 1 | 34326755607 | $10.03 | Shop at ECS Tuning | ||||
| 07 | Mezikus | M10X1 | 2 | 34321160028 | $7.23 | Shop at ECS Tuning | ||||
| 08 | Distanční trubka | 2 | 34321151857 | $1.24 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Spona | 3 | 34321108210 | $0.60 | Shop at ECS Tuning | |||||
| 10 | Spona | X | 34321108212 | $2.70 | Shop at ECS Tuning | |||||
| 11 | Spona | X | 34321108261 | $0.61 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | Uchycení | X | 34321155062 | $0.60 | Shop at ECS Tuning | |||||
| 12 | Uchycení | X | 34321155731 | $0.36 | UKONČENO | Shop at ECS Tuning | ||||
| 13 | Uchycení | X | 34321155735 | $0.48 | UKONČENO | Shop at ECS Tuning | ||||
| 13 | Uchycení | X | 34321155737 | $0.48 | UKONČENO | Shop at ECS Tuning | ||||
| 14 | Řezný šroub | X | 34321119239 | $0.27 | Shop at ECS Tuning | |||||
| 14 | Šroub | M4X17 | X | 34321151858 | $0.29 | UKONČENO | Shop at ECS Tuning | |||
| 15 | Distanční držák 4násobný | X | 34326777692 | $0.38 | Shop at ECS Tuning | |||||
| 16 | Držák brzdové potrubí | X | 34321155786 | $1.43 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 520i Brzdové potrubí přední ABS?
- This technical diagram illustrates the Brzdové potrubí přední ABS within the Brzdy group for the 5 Series E28 520i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Trubkové vedení (Part #34326755656).
- Which models use the hardware listed in this Brzdové potrubí přední ABS?
- The hardware and components featured in the Brzdové potrubí přední ABS are specific to the 5 Series E28 520i produced during 1987. These technical specifications ensure that parts like the Trubkové vedení (34326755656) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brzdové potrubí přední ABS assembly?
- Each item in the Brzdové potrubí přední ABS corresponds to the numbered list below the illustration. For the 5 Series E28 520i, you can identify the Trubkové vedení by locating its position on the schematic, which then links to the official BMW part number 34326755656 for the Brzdy section.
