Parkovací brzda/ovládání for BMW 6 Series E24 633CSi

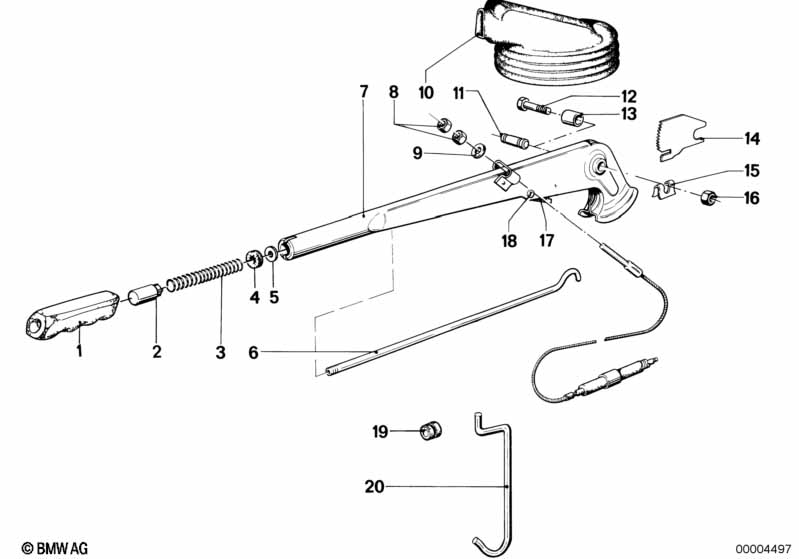

This Parkovací brzda/ovládání technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rukojeť ruční brzdy plastová | 1 | 09/1982 | 34411116435 | $5.58 | Shop at ECS Tuning | ||||
| 02 | Tlačítko | 1 | 09/1982 | 34411116436 | $1.00 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Tlačná pružina | 1 | 09/1982 | 34411116434 | $8.47 | Shop at ECS Tuning | ||||
| 04 | Pryžový kotouč | 1 | 09/1982 | 34414045712 | $0.20 | Shop at ECS Tuning | ||||
| 05 | Podložka | 8,4 140HV | 1 | 09/1982 | 07119931684 | $0.40 | Shop at ECS Tuning | |||
| 06 | Tlačná tyč | 1 | 09/1982 | 34411152892 | $0.95 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Páka ruční brzdy | 1 | 09/1982 | 34411117745 | $71.68 | Shop at ECS Tuning | ||||
| 08 | Šestihranná matice | M6-8-ZNNIV SI | 4 | 09/1982 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 09 | Podložka | A6,4-ZNNIV SI | 2 | 09/1982 | 07119904202 | Shop at ECS Tuning | ||||
| 10 | Ochranné víčko | 1 | 09/1982 | 34411101501 | $27.58 | UKONČENO | Shop at ECS Tuning | |||
| 13 | Distanční trubka | 1 | 09/1977 | 09/1982 | 34411118529 | $1.87 | Shop at ECS Tuning | |||
| 14 | Uzavírací segment | 1 | 09/1982 | 34411118530 | UKONČENO | Shop at ECS Tuning | ||||
| 14 | Uzavírací segment | 1 | 09/1982 | 34411151769 | $98.52 | Shop at ECS Tuning | ||||
| 16 | Šestihranná matice samojisticí | M10 | 1 | 09/1977 | 09/1982 | 07129964672 | $0.36 | Shop at ECS Tuning | ||
| 17 | Blokovací západka | 1 | 09/1982 | 34411103985 | $61.95 | UKONČENO | Shop at ECS Tuning | |||
| 18 | Čep | 1 | 09/1982 | 34411114413 | $0.57 | Shop at ECS Tuning | ||||
| 19 | Průchodka | 3 | 09/1982 | 34411102688 | $2.83 | UKONČENO | Shop at ECS Tuning | |||
| 20 | Závěsný hák | 3 | 09/1982 | 34411119369 | $0.66 | Shop at ECS Tuning | ||||
| 20 | Závěsný hák | 1 | 09/1979 | 09/1982 | 34411151535 | $0.70 | UKONČENO | Shop at ECS Tuning | ||
| 20 | Závěsný hák | 1 | 09/1979 | 09/1982 | 34411151535 | $0.70 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
