Parkovací brzda/ovládání for BMW 6 Series E24 633CSi

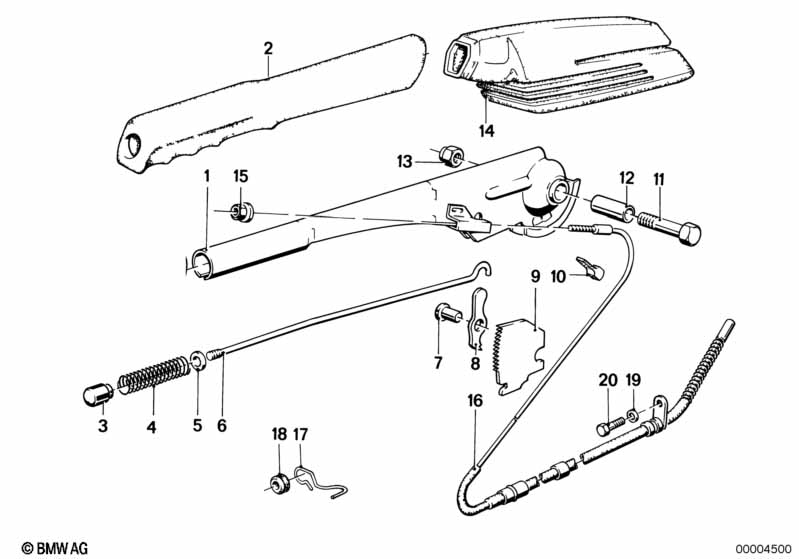

This Parkovací brzda/ovládání technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Páka ruční brzdy | 1 | 09/1982 | 34411152604 | $183.79 | Shop at ECS Tuning | ||||
| 02 | Rukojeť | 1 | 09/1982 | 34411152521 | $2.38 | Shop at ECS Tuning | ||||
| 03 | Tlačítko | 1 | 09/1982 | 34411116436 | $1.00 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Tlačná pružina | 1 | 09/1982 | 34411150662 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Pryžový kotouč | 1 | 09/1982 | 34414045712 | $0.20 | Shop at ECS Tuning | ||||
| 06 | Tlačná tyč | 1 | 09/1982 | 34411150661 | $1.43 | Shop at ECS Tuning | ||||
| 09 | Uzavírací segment | 1 | 09/1982 | 34411151769 | $98.52 | Shop at ECS Tuning | ||||
| 10 | Vedení | 1 | 09/1982 | 34411117897 | $0.63 | Shop at ECS Tuning | ||||
| 11 | Šestihranný šroub | M10X60 | 1 | 09/1982 | 07119921502 | $1.18 | Shop at ECS Tuning | |||
| 11 | Šestihranný šroub | M10X60-10.9ZNS3 | 1 | 09/1982 | 07119905162 | $1.78 | Shop at ECS Tuning | |||
| 12 | Distanční pouzdro | 1 | 09/1982 | 35214045708 | $2.82 | Shop at ECS Tuning | ||||
| 13 | Šestihranná matice samojisticí | M10 | 1 | 09/1982 | 07129964672 | $0.36 | Shop at ECS Tuning | |||
| 14 | Ochranné víčko | 1 | 09/1982 | 34411153534 | $32.05 | Shop at ECS Tuning | ||||
| 15 | Šestihranná matice s podložkou | M6 Z1-ZNNIV SI | 2 | 09/1982 | 07146778500 | $0.47 | Shop at ECS Tuning | |||
| 16 | Bovden | 2 | 09/1982 | 34411154106 | $35.50 | Shop at ECS Tuning | ||||
| 17 | Závěsný hák | 2 | 09/1982 | 34411152241 | $0.61 | Shop at ECS Tuning | ||||
| 18 | Průchodka | 2 | 09/1982 | 34411102688 | $2.83 | UKONČENO | Shop at ECS Tuning |
