Parkovací brzda/ovládání for BMW 3 Series E30 324td (1993)

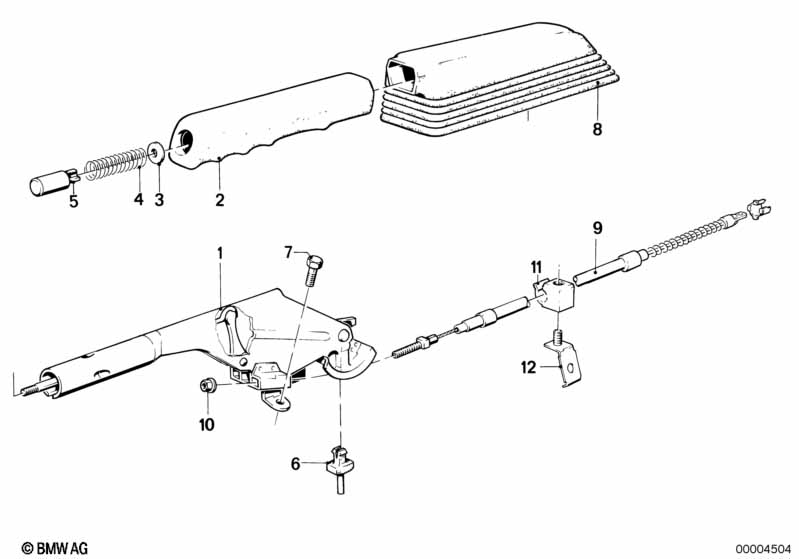

This Parkovací brzda/ovládání technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 324td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Páka ruční brzdy | 1 | 34411154107 | $30.56 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Rukojeť ruční brzdy | SCHWARZ | 1 | 34411153277 | $5.09 | Shop at ECS Tuning | ||||
| 03 | Pryžový kotouč | 1 | 34414045712 | $0.20 | Shop at ECS Tuning | |||||
| 04 | Tlačná pružina | 1 | 34411150662 | $0.40 | Shop at ECS Tuning | |||||
| 05 | Tlačítko | 1 | 34411152393 | $2.22 | Shop at ECS Tuning | |||||
| 06 | Vedení | 1 | 34411117897 | $0.63 | Shop at ECS Tuning | |||||
| 07 | Šestihranný šroub s podložkou | M8X18-SB-Z1 | 2 | 07119915072 | $0.30 | Shop at ECS Tuning | ||||
| 08 | Kryt páky ruční brzdy | SCHWARZ | 1 | 34411154166 | $21.69 | UKONČENO | Shop at ECS Tuning | |||
| 09 | Bovden | 2 | 34411158421 | $34.54 | Shop at ECS Tuning | |||||
| 10 | Šestihranná matice s podložkou | M6 Z1-ZNNIV SI | 2 | 07146778500 | $0.47 | Shop at ECS Tuning | ||||
| 11 | Držák vedení | 2 | 34411154158 | $0.68 | Shop at ECS Tuning | |||||
| 12 | Přídržný úhelník | 2 | 34411153880 | $0.68 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
