Protiblokovací systém-řídicí jednotka for BMW 5 Series E34 535i (1992)

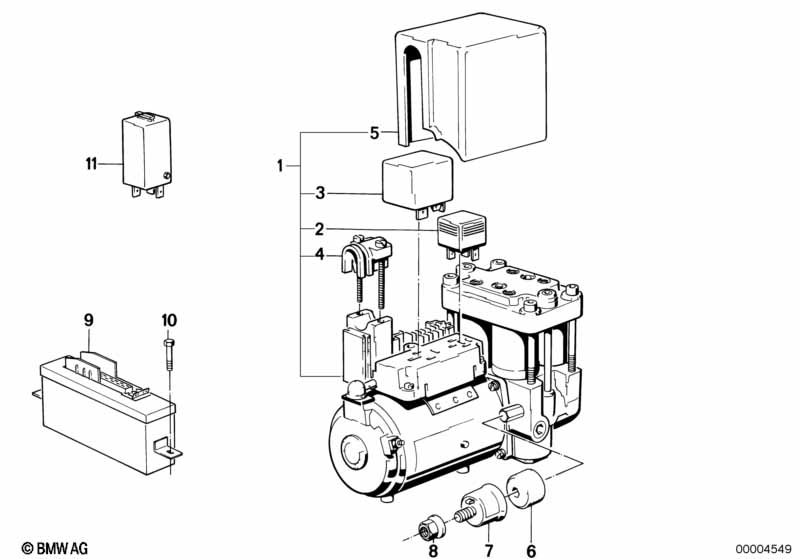

This Protiblokovací systém-řídicí jednotka technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydraulický agregát | 1 | 34511157874 | $1739.40 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Relé elektrický motor | 1 | 34511157426 | $58.43 | Shop at ECS Tuning | |||||
| 03 | Relé ovládání ventilů | 1 | 34511157427 | $52.55 | Shop at ECS Tuning | |||||
| 04 | Spona | 1 | 34511154335 | UKONČENO | Shop at ECS Tuning | |||||
| 05 | Odnímatelný kryt | 1 | 34511157766 | $33.25 | Shop at ECS Tuning | |||||
| 06 | Pryžové ložisko | 3 | 34511150134 | $2.57 | Shop at ECS Tuning | |||||
| 07 | Uložení | 3 | 34511150132 | $4.33 | Shop at ECS Tuning | |||||
| 08 | Matice s nákružkem samojistící | M8-8-ZNS3 | 3 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Matice s nákružkem samojistící | M8-10 ZNS3 | 3 | 07119905374 | Shop at ECS Tuning | |||||
| 09 | Řídicí jednotka ABS/ASC | 1 | 34521090155 | $888.89 | Shop at ECS Tuning | |||||
| 09 | Řídicí jednotka ABS | 1 | 34521158958 | $856.07 | Shop at ECS Tuning | |||||
| 10 | Šestihranná matice s podložkou | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 11 | Relé | 1 | 34521179131 | $111.13 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
