Posilovač brzd podtlak for BMW 3 Series E36 323i (1997)

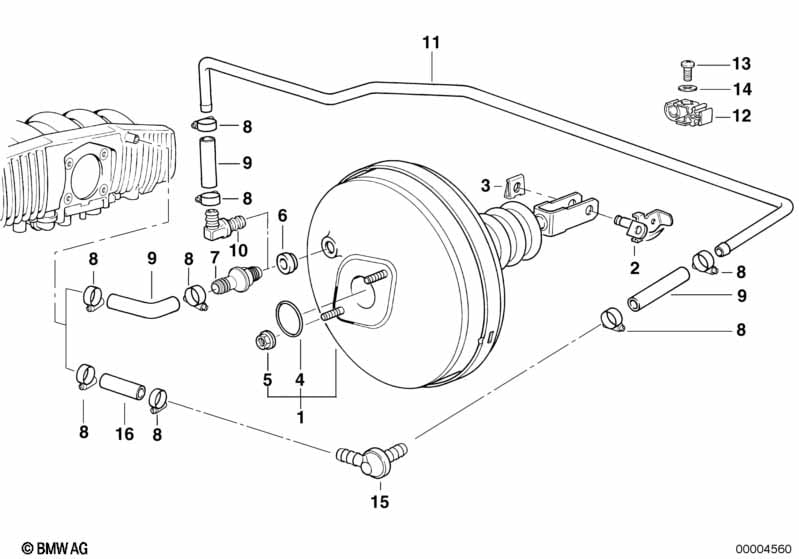

This Posilovač brzd podtlak technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Posilovač brzd | 1 | 34331162963 | $505.30 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Matice s nákružkem samojistící | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| 02 | Čep | 1 | 34331158496 | $4.95 | Shop at ECS Tuning | |||||
| 03 | Pojistka | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 04 | O-kroužek hlavní brzdový válec | 1 | 34311160617 | $4.32 | Shop at ECS Tuning | |||||
| 05 | Šestihranná matice samojisticí | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 06 | Těsnění | 1 | 34336893085 | Shop at ECS Tuning | ||||||
| 07 | Zpětný ventil | 1 | 34331160183 | $7.02 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Zpětný ventil | 1 | 11667609924 | Shop at ECS Tuning | ||||||
| 08 | hadicová spona | 21,3MM | 2 | 11151726339 | $1.02 | Shop at ECS Tuning | ||||
| 09 | Hadice | 12X19 | X | 34331108710 | $23.58 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 323i Posilovač brzd podtlak?
- This technical diagram illustrates the Posilovač brzd podtlak within the Brzdy group for the 3 Series E36 323i produced during 1997. It provides a detailed exploded view of the components, identifying key parts such as the Posilovač brzd (Part #34331162963).
- Which models use the hardware listed in this Posilovač brzd podtlak?
- The hardware and components featured in the Posilovač brzd podtlak are specific to the 3 Series E36 323i produced during 1997. These technical specifications ensure that parts like the Posilovač brzd (34331162963) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Posilovač brzd podtlak assembly?
- Each item in the Posilovač brzd podtlak corresponds to the numbered list below the illustration. For the 3 Series E36 323i, you can identify the Posilovač brzd by locating its position on the schematic, which then links to the official BMW part number 34331162963 for the Brzdy section.
