Bubnová brzda-brzd.čelisti/brzdový držák for BMW 3 Series E36 318i (1998)

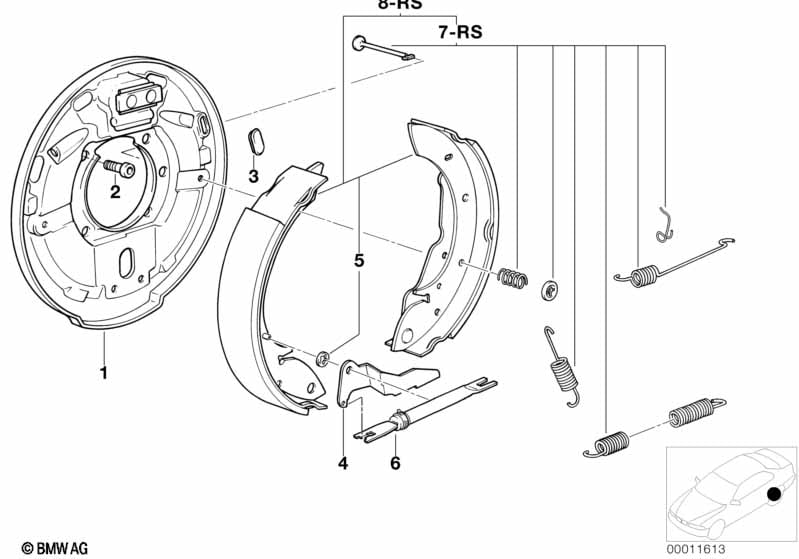

This Bubnová brzda-brzd.čelisti/brzdový držák technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Štít brzdy levý | 1 | 34211159115 | Shop at ECS Tuning | ||||||
| 01 | Štít brzdy pravý | 1 | 34211159116 | Shop at ECS Tuning | ||||||
| 02 | Šroub s válcovou hlavou | M10X16-10.9 PHR | X | 07119919660 | $0.43 | Shop at ECS Tuning | ||||
| 03 | Zátka | 2 | 34211159145 | Shop at ECS Tuning | ||||||
| 04 | Seřizovací páka levá | 1 | 34211159143 | $8.00 | Shop at ECS Tuning | |||||
| 04 | Seřizovací páka pravá | 1 | 34211159144 | $8.22 | Shop at ECS Tuning | |||||
| 05 | Pojistná podložka | 2 | 34211159563 | Shop at ECS Tuning | ||||||
| 06 | Seřizovací jednotka levá | 1 | 34211159135 | $21.20 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Seřizovací jednotka pravá | 1 | 34211159136 | $21.20 | Shop at ECS Tuning | |||||
| 07 | Opravná sada pružiny | 1 | 34219067128 | $33.00 | Shop at ECS Tuning | |||||
| 08 | Opravná sada brzdové čelisti s pružinou | 1 | 34219067127 | $147.63 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318i Bubnová brzda-brzd.čelisti/brzdový držák?
- This technical diagram illustrates the Bubnová brzda-brzd.čelisti/brzdový držák within the Brzdy group for the 3 Series E36 318i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Štít brzdy levý (Part #34211159115).
- Which models use the hardware listed in this Bubnová brzda-brzd.čelisti/brzdový držák?
- The hardware and components featured in the Bubnová brzda-brzd.čelisti/brzdový držák are specific to the 3 Series E36 318i produced during 1998. These technical specifications ensure that parts like the Štít brzdy levý (34211159115) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bubnová brzda-brzd.čelisti/brzdový držák assembly?
- Each item in the Bubnová brzda-brzd.čelisti/brzdový držák corresponds to the numbered list below the illustration. For the 3 Series E36 318i, you can identify the Štít brzdy levý by locating its position on the schematic, which then links to the official BMW part number 34211159115 for the Brzdy section.
