Čidlo brzdového obložení přední brzdy for BMW 8 Series E31 850Ci (1994)

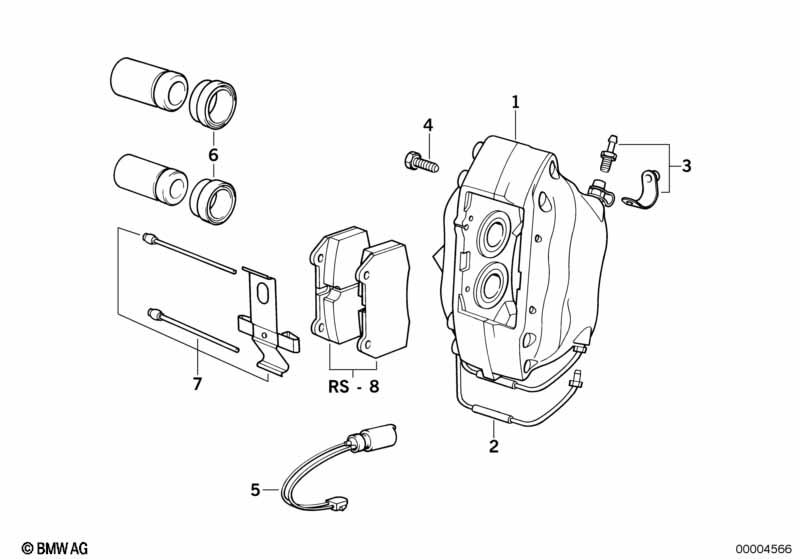

This Čidlo brzdového obložení přední brzdy technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Třmen těleso kotoučové brzdy levý | BREMBO | 1 | 08/1993 | 34111161177 | $711.40 | Shop at ECS Tuning | |||
| 01 | Třmen těleso kotoučové brzdy pravý | BREMBO | 1 | 08/1993 | 34111161178 | $711.40 | Shop at ECS Tuning | |||
| 02 | Spojovací trubka | 2 | 08/1993 | 34111162179 | $42.00 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Sada odvzdušňovací šroub | 2 | 08/1993 | 34111162177 | $19.53 | Shop at ECS Tuning | ||||
| 04 | Šestihranný šroub | M12X1,5X41 10.9 | 4 | 08/1993 | 09/1995 | 34111151604 | $1.77 | Shop at ECS Tuning | ||
| 04 | Šestihranný šroub | M12X1,5X41 | 4 | 08/1993 | 34111156989 | $2.52 | Shop at ECS Tuning | |||
| 04 | Šestihranný šroub | M12X1,5X41 ZNS3 | 4 | 08/1993 | 34116767217 | $1.75 | Shop at ECS Tuning | |||
| 05 | Snímač brzdového obložení | 1 | 08/1993 | 34351181823 | $17.24 | Shop at ECS Tuning | ||||
| 06 | Ochranná manžeta proti prachu | 2 | 08/1993 | 34111162178 | $35.48 | Shop at ECS Tuning | ||||
| 07 | Sada montážní díly | 1 | 08/1993 | 34111164082 | $56.28 | Shop at ECS Tuning | ||||
| 08 | Opravná sada brzdové oblož. bez azbestu | JURID 187 | 1 | 08/1993 | 34111163923 | $126.99 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
