Posilovač brzd podtlak for BMW 5 Series E39 523i (1998)

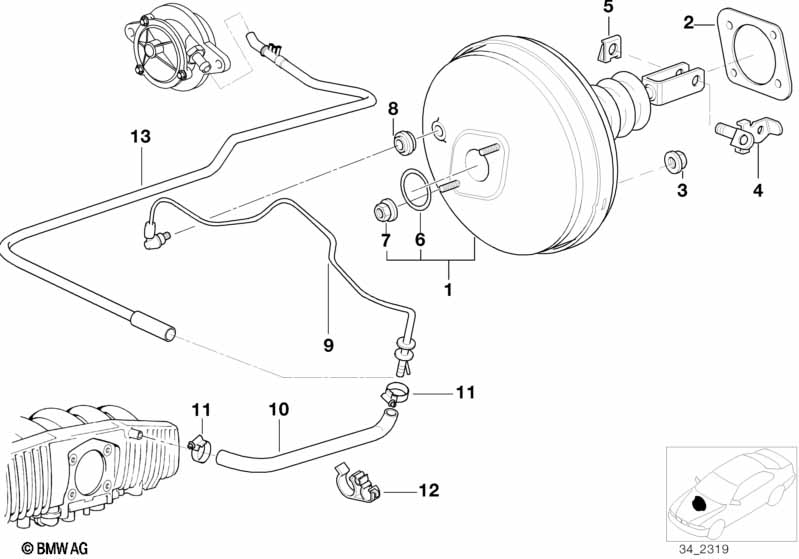

This Posilovač brzd podtlak technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Posilovač brzd | LSC-145 | 1 | 09/1997 | 34331165541 | $588.00 | UKONČENO | Shop at ECS Tuning | ||
| pouze společně s | ||||||||||
| -- | Těsnění | D=70MM | 1 | 09/1997 | 35111165132 | $3.10 | Shop at ECS Tuning | |||
| -- | Matice s nákružkem samojistící | M8-10 ZNS3 | 2 | 09/1997 | 07119905374 | Shop at ECS Tuning | ||||
| 02 | Těsnění | D=70MM | 1 | 09/1997 | 35111165132 | $3.10 | Shop at ECS Tuning | |||
| 03 | Matice s nákružkem samojistící | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| 05 | Pojistka | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 06 | O-kroužek hlavní brzdový válec | 1 | 34311165092 | $3.15 | Shop at ECS Tuning | |||||
| 07 | Šestihranná matice samojisticí | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 08 | Těsnicí kroužek | 1 | 34331158929 | $3.15 | Shop at ECS Tuning | |||||
| 09 | Podtlakové vedení | 1 | 09/1997 | 34331165074 | UKONČENO | Shop at ECS Tuning | ||||
| 10 | Podtlaková hadice | 1 | 09/1998 | 34331165497 | Shop at ECS Tuning | |||||
| 11 | hadicová spona | 21,3MM | 2 | 11151726339 | $1.02 | Shop at ECS Tuning | ||||
| 12 | Držák hadice | 1 | 34301163786 | Shop at ECS Tuning | ||||||
Notes
- Ukončeno = Díl se již nevyrábí.
