Brzdové potrubí přední ABS/ASC+T for BMW 3 Series E36 318i (1998)

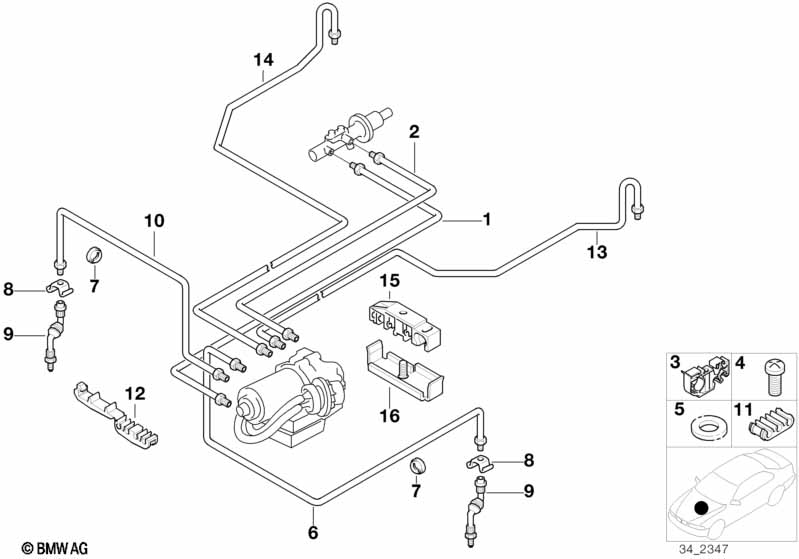

This Brzdové potrubí přední ABS/ASC+T technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trubkové vedení | M10/M10-1200MM | 1 | 34326755613 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Řezný šroub | M4X13 | 2 | 34321161389 | $0.08 | Shop at ECS Tuning | ||||
| 05 | Okno | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| 06 | Trubkové vedení | M10/M12-1009MM | 1 | 34326755505 | $10.03 | Shop at ECS Tuning | ||||
| 07 | Pryžová průchodka | 2 | 34331161163 | $1.53 | Shop at ECS Tuning | |||||
| 08 | Přídržné péro | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 09 | Brzdová hadice přední | 2 | 34321159717 | $39.55 | Shop at ECS Tuning | |||||
| 10 | Trubkové vedení | M10/M10-2143MM | 1 | 34326755654 | $10.03 | Shop at ECS Tuning | ||||
| 11 | Držák brzdové potrubí | 1 | 34321107992 | $1.02 | Shop at ECS Tuning | |||||
| 12 | Distanční držák 4násobný | 1 | 34326777692 | $0.38 | Shop at ECS Tuning | |||||
| 13 | Trubkové vedení | M10/M12-3154MM | 1 | 34326755521 | $17.08 | Shop at ECS Tuning | ||||
| 14 | Trubkové vedení | M10/M10-3850MM | 1 | 34326755706 | $17.08 | Shop at ECS Tuning | ||||
| 15 | Držák vedení | 5-FACH | 3 | 16121181908 | $2.25 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
