Dodatečná sada dvojitá kotoučová brzda for BMW R45-R65LS..78-85 R45 (1978)

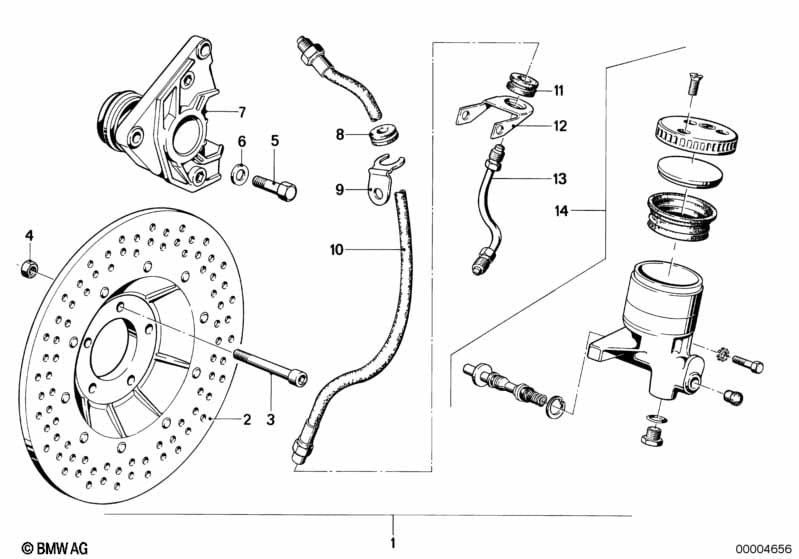

This Dodatečná sada dvojitá kotoučová brzda technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ATE | |||||||||
| 01 | Dodatečná sada dvojitá kotoučová brzda | 1 | 09/1980 | 34111238214 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Brzdový kotouč | 1 | 09/1980 | 34111236005 | $435.50 | +core | Shop at ECS Tuning | |||
| 03 | Šroub s válcovou hlavou | M8X70-8.8-ZNS | 5 | 09/1980 | 07119901038 | $2.64 | UKONČENO | Shop at ECS Tuning | ||
| 04 | Šestihranná matice samojisticí | M8-8-ZNS3 | 5 | 09/1980 | 07129904002 | $0.18 | Shop at ECS Tuning | |||
| 06 | Objímka | 1,2 | 2 | 09/1980 | 34111238079 | $8.25 | Shop at ECS Tuning | |||
| 06 | Objímka | 2,35 | 2 | 09/1980 | 34111238080 | $8.25 | Shop at ECS Tuning | |||
| 06 | Objímka | 3,5 | 2 | 09/1980 | 34111238081 | $8.25 | Shop at ECS Tuning | |||
| 07 | Třmen kotoučové brzdy pravý | ATE | 1 | 09/1980 | 34111237258 | $487.37 | UKONČENO, +core | Shop at ECS Tuning | ||
| 08 | Průchodka | 1 | 09/1980 | 34321237259 | $1.82 | Shop at ECS Tuning | ||||
| 09 | Držák hadice | 1 | 09/1980 | 34321237255 | $1.39 | Shop at ECS Tuning | ||||
| 10 | Brzdová hadice | 470 LG. | 1 | 09/1980 | 34321239826 | $91.16 | UKONČENO | Shop at ECS Tuning | ||
| 10 | Brzdová hadice | 1 | 09/1980 | 34321237261 | Shop at ECS Tuning | |||||
| 11 | Průchodka | 1 | 09/1980 | 34321236462 | $2.80 | Shop at ECS Tuning | ||||
| 12 | Držák hadice | 1 | 09/1980 | 34321237256 | $18.26 | Shop at ECS Tuning | ||||
| 13 | Brzdové potrubí pravé | 1 | 09/1980 | 34321238258 | $8.34 | Shop at ECS Tuning | ||||
| 14 | Válec s pístem | D=16MM | 1 | 09/1980 | 32722302355 | $201.79 | UKONČENO, +core | Shop at ECS Tuning | ||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
