Brzdový kotouč/třmen/mont. díly/přední for BMW 1502-2002tii 1602 (1975)

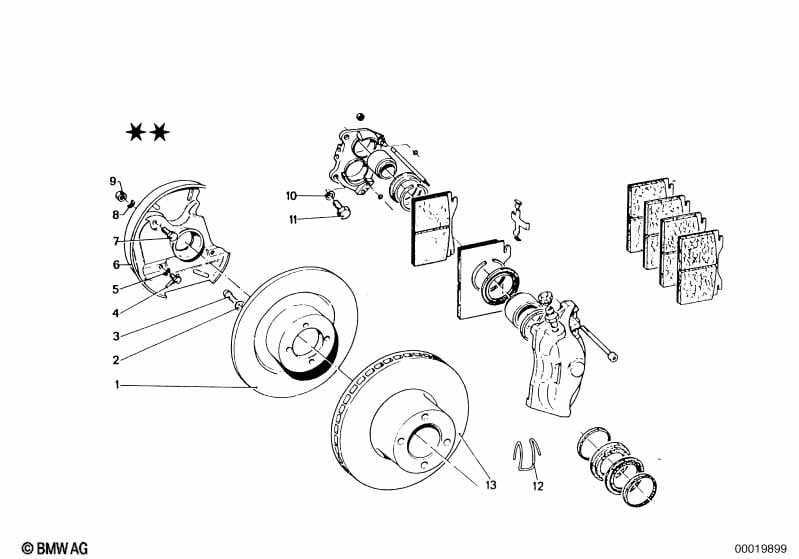

This Brzdový kotouč/třmen/mont. díly/přední technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brzdový kotouč | 240X10 | 2 | 03/1966 | 07/1977 | 34111117422 | $139.45 | Shop at ECS Tuning | ||
| 02 | Pružná podložka | B10-ZNS3 | 8 | 07119904463 | Shop at ECS Tuning | |||||
| 03 | Šroub s válcovou hlavou | M10X25-10.9 PHR | 8 | 07119919994 | $0.84 | Shop at ECS Tuning | ||||
| 04 | Šestihranný šroub | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 05 | Pružná podložka | B6 | 4 | 07119932072 | $0.09 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Krycí plech levý | 1 | 03/1966 | 07/1977 | 34111108702 | $80.52 | Shop at ECS Tuning | |||
| 06 | Krycí plech pravý | 1 | 03/1966 | 07/1977 | 34111108703 | $80.52 | UKONČENO | Shop at ECS Tuning | ||
| 07 | Šroub | 2 | 34112760117 | UKONČENO | Shop at ECS Tuning | |||||
| 08 | Pružná podložka | B8 | 2 | 34111113404 | $0.04 | UKONČENO | Shop at ECS Tuning | |||
| 09 | Šestihranná matice | M8-8-ZNS3 | 2 | 07/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 09 | Šestihranná matice | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 10 | Pružná podložka | B12-ZN | 4 | 07119932132 | $0.25 | UKONČENO | Shop at ECS Tuning | |||
| 11 | Šestihranný šroub | M12X1,5X32 | 4 | 34111118948 | $1.86 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1602 Brzdový kotouč/třmen/mont. díly/přední?
- This technical diagram illustrates the Brzdový kotouč/třmen/mont. díly/přední within the Brzdy group for the 1502-2002tii 1602 produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Brzdový kotouč (Part #34111117422).
- Which models use the hardware listed in this Brzdový kotouč/třmen/mont. díly/přední?
- The hardware and components featured in the Brzdový kotouč/třmen/mont. díly/přední are specific to the 1502-2002tii 1602 produced during 1975. These technical specifications ensure that parts like the Brzdový kotouč (34111117422) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brzdový kotouč/třmen/mont. díly/přední assembly?
- Each item in the Brzdový kotouč/třmen/mont. díly/přední corresponds to the numbered list below the illustration. For the 1502-2002tii 1602, you can identify the Brzdový kotouč by locating its position on the schematic, which then links to the official BMW part number 34111117422 for the Brzdy section.
