Brzda předního kola 2 okruh for BMW 1500-2000CS 1800 (1971)

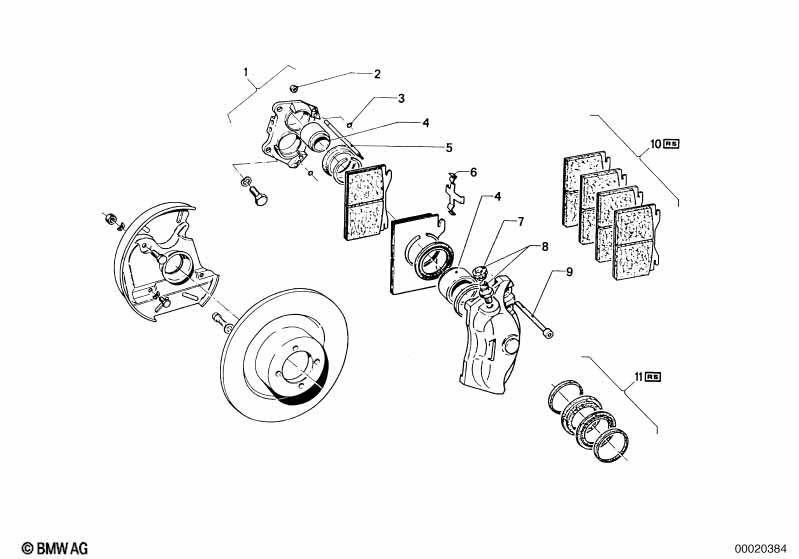

This Brzda předního kola 2 okruh technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| přední levý | ||||||||||
| 01 | Třmen kotoučové brzdy bez obložení pravý | 1 | 34111101094 | $413.89 | UKONČENO | Shop at ECS Tuning | ||||
| přední pravý | ||||||||||
| 01 | Třmen kotoučové brzdy bez obložení levý | 1 | 34111101093 | $413.89 | Shop at ECS Tuning | |||||
| 06 | Sada montážní díly | 1 | 34111113663 | $30.03 | Shop at ECS Tuning | |||||
| 10 | Opravná sada brzdové oblož. bez azbestu | TEXTAR T476 | 1 | 34111159257 | $92.64 | UKONČENO | Shop at ECS Tuning | |||
| 11 | Sada těsnění třmen kotoučové brzdy | ATE | 1 | 34111158692 | $46.19 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Brzda předního kola 2 okruh?
- This technical diagram illustrates the Brzda předního kola 2 okruh within the Brzdy group for the 1500-2000CS 1800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Třmen kotoučové brzdy bez obložení pravý (Part #34111101094).
- Which models use the hardware listed in this Brzda předního kola 2 okruh?
- The hardware and components featured in the Brzda předního kola 2 okruh are specific to the 1500-2000CS 1800 produced during 1971. These technical specifications ensure that parts like the Třmen kotoučové brzdy bez obložení pravý (34111101094) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brzda předního kola 2 okruh assembly?
- Each item in the Brzda předního kola 2 okruh corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Třmen kotoučové brzdy bez obložení pravý by locating its position on the schematic, which then links to the official BMW part number 34111101094 for the Brzdy section.
