Brzdové potrubí zadní bez ABS for BMW 5 Series E34 520i (1996)

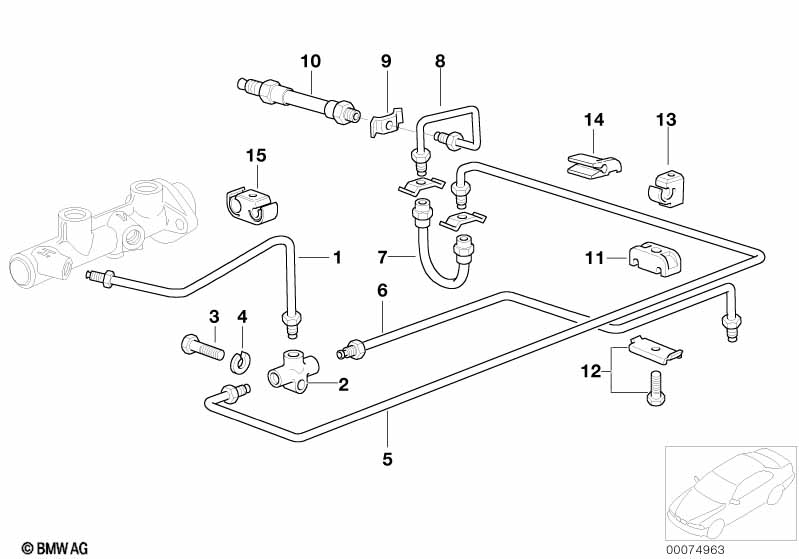

This Brzdové potrubí zadní bez ABS technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trubkové vedení | M10/M10-3440MM | 1 | 34406755697 | $14.50 | Shop at ECS Tuning | ||||
| 02 | Rozdělovač | M10X1 | 1 | 34341111435 | $8.08 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Šestihranný šroub | M6X22-8.8-ZNS3 | 1 | 07119904505 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Podložka | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Trubkové vedení | M10/M10-260MM | 1 | 34326755555 | $5.83 | Shop at ECS Tuning | ||||
| 06 | Trubkové vedení | M10/M10 | 1 | 34306779187 | $38.58 | Shop at ECS Tuning | ||||
| 07 | Brzdová hadice zadní | L=222MM | 2 | 34321159878 | $38.29 | Shop at ECS Tuning | ||||
| 08 | Trubkové vedení | M10/M10-470MM | 2 | 34326755576 | $7.60 | Shop at ECS Tuning | ||||
| 09 | Přídržné péro | 6 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 10 | Brzdová hadice zadní | L=200MM | 2 | 34321159881 | $30.11 | Shop at ECS Tuning | ||||
| 11 | Spona | X | 34321156195 | $0.32 | Shop at ECS Tuning | |||||
| 12 | Uchycení | X | 16121155060 | $1.08 | Shop at ECS Tuning | |||||
| 13 | Držák brzdové potrubí | 3 | 34326855500 | Shop at ECS Tuning | ||||||
| 14 | Svorka | 2 | 34321238089 | $0.78 | UKONČENO | Shop at ECS Tuning | ||||
| 15 | Držák brzdové potrubí | 3 | 34321161223 | $0.87 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 520i Brzdové potrubí zadní bez ABS?
- This technical diagram illustrates the Brzdové potrubí zadní bez ABS within the Brzdy group for the 5 Series E34 520i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Trubkové vedení (Part #34406755697).
- Which models use the hardware listed in this Brzdové potrubí zadní bez ABS?
- The hardware and components featured in the Brzdové potrubí zadní bez ABS are specific to the 5 Series E34 520i produced during 1996. These technical specifications ensure that parts like the Trubkové vedení (34406755697) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brzdové potrubí zadní bez ABS assembly?
- Each item in the Brzdové potrubí zadní bez ABS corresponds to the numbered list below the illustration. For the 5 Series E34 520i, you can identify the Trubkové vedení by locating its position on the schematic, which then links to the official BMW part number 34406755697 for the Brzdy section.
