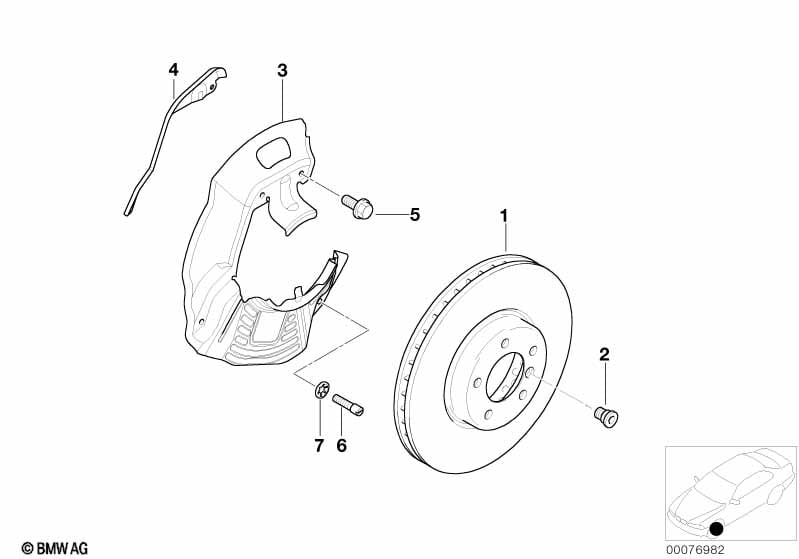

Brzda předního kola-brzdový kotouč for BMW 5 Series E39 530d (1998)
This Brzda předního kola-brzdový kotouč technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brzdový větraný | 296X22 | 2 | 09/2000 | 34116767061 | $103.08 | Shop at ECS Tuning | |||
| 02 | Šroub s vnitřním šestihranem | M8X14 | 2 | 34211161806 | $1.38 | Shop at ECS Tuning | ||||
| 03 | Krycí plech levý | 1 | 34111162955 | $30.12 | Shop at ECS Tuning | |||||
| 03 | Krycí plech pravý | 1 | 34111162956 | $30.12 | Shop at ECS Tuning | |||||
| 04 | Odrážeč kamenů levý | 1 | 34101165225 | $20.22 | Shop at ECS Tuning | |||||
| 04 | Odrážeč kamenů pravý | 1 | 34101165226 | $20.22 | Shop at ECS Tuning | |||||
| 05 | Šestihranný šroub s podložkou | M6X12-U1 | 6 | 07119904511 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Šroub bez hlavy | 2 | 34111164022 | $1.13 | Shop at ECS Tuning | |||||
| 07 | Pružná podložka | 5,7 / 13 | 2 | 34111164008 | $0.30 | Shop at ECS Tuning |
