Posilovač brzd podtlak for BMW 3 Series E46 316i (2004)

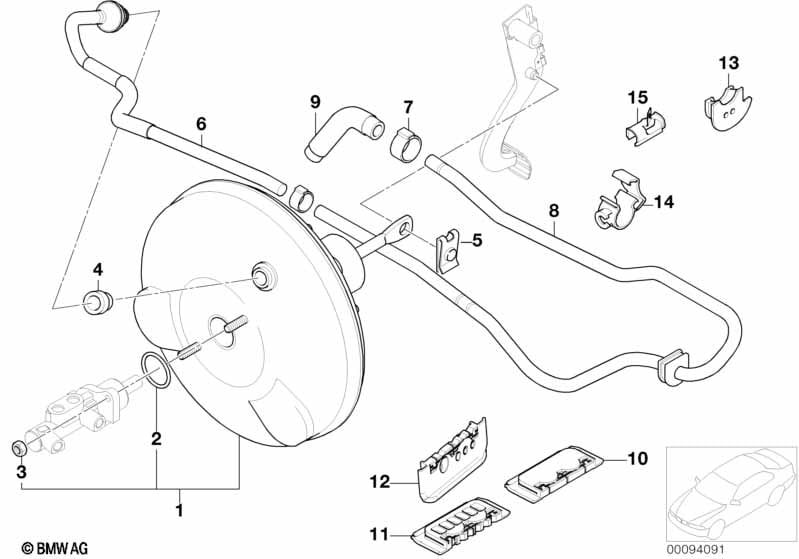

This Posilovač brzd podtlak technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Podtlakové vedení viz Hlavní skupina 11 |
|||||||||
| 01 | Posilovač brzd | 1 | 34336779682 | $403.33 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Matice s nákružkem samojistící | M8-10 ZNS3 | 3 | 07119905374 | Shop at ECS Tuning | |||||
| 02 | O-kroužek hlavní brzdový válec | 1 | 34311160617 | $4.32 | Shop at ECS Tuning | |||||
| 03 | Šestihranná matice samojisticí | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 04 | Těsnění | 1 | 34336893085 | Shop at ECS Tuning | ||||||
| 05 | Pojistka | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Podtlakové vedení | 1 | 34336758598 | Shop at ECS Tuning | ||||||
| 07 | hadicová spona | 21,3MM | 2 | 11151726339 | $1.02 | Shop at ECS Tuning | ||||
| 08 | Podtlakové vedení | 1 | 34336758621 | Shop at ECS Tuning | ||||||
| 09 | Hadicové koleno | 1 | 34336769377 | Shop at ECS Tuning | ||||||
| 10 | Pryžová průchodka | 1 | 34301164314 | $2.75 | Shop at ECS Tuning | |||||
| 11 | Těsnění horní díl | 1 | 34301164316 | $0.90 | Shop at ECS Tuning | |||||
| 12 | Pryžová průchodka | 1 | 34306752336 | Shop at ECS Tuning | ||||||
| 13 | Pryžová průchodka | 1 | 34301165409 | $2.15 | Shop at ECS Tuning | |||||
| 14 | Upínací svorky | 4 | 34321163227 | $0.80 | Shop at ECS Tuning | |||||
| 15 | Držák podtlakové vedení | 2 | 34336756614 | $0.40 | Shop at ECS Tuning | |||||
