Posilovač brzd podtlak for BMW MINI R50 Cooper (2000)

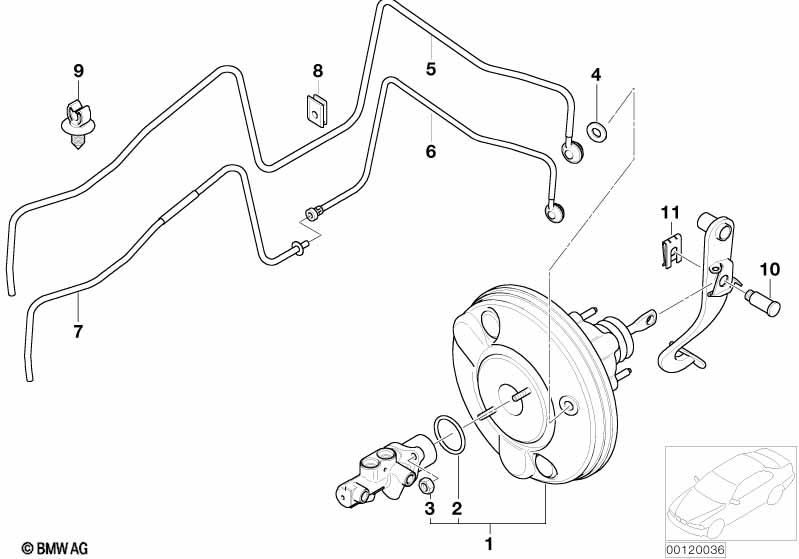

This Posilovač brzd podtlak technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Posilovač brzd | 1 | 34336779679 | $355.55 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Matice s nákružkem samojistící | M8-10 ZNS3 | 3 | 07119905374 | Shop at ECS Tuning | |||||
| 02 | O-kroužek hlavní brzdový válec | 1 | 34311160617 | $4.32 | Shop at ECS Tuning | |||||
| 03 | Šestihranná matice samojisticí | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 04 | Těsnění | 1 | 34336893085 | Shop at ECS Tuning | ||||||
| 05 | Podtlakové vedení se zpětným ventilem | 1 | 09/2002 | 34336763357 | $26.17 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Podtlakové vedení | 1 | 09/2002 | 34336761453 | $9.20 | Shop at ECS Tuning | ||||
| 08 | Pryžová průchodka | 1 | 34336756248 | $2.07 | Shop at ECS Tuning | |||||
| 09 | Vodicí svorka jednoduchá | 2 | 34326757257 | $1.08 | Shop at ECS Tuning | |||||
| 10 | Pojistný čep | 1 | 34331505053 | $3.68 | Shop at ECS Tuning | |||||
| 11 | Pojistka | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
