Hydr.agreg. protipr.reg./říd.jedn./držák for BMW MINI R50 Cooper (2000)

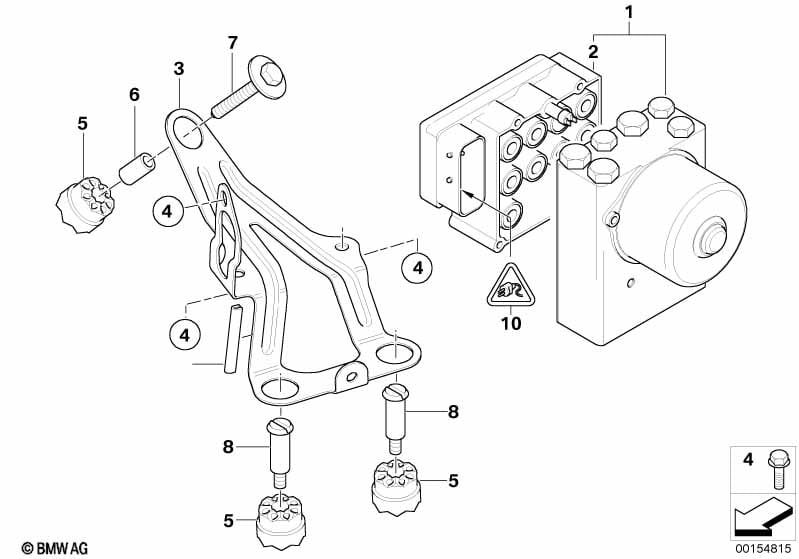

This Hydr.agreg. protipr.reg./říd.jedn./držák technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Automatická kontrola stability (ASC+T) |
S214A=Ano |
||||||||
| 01 | Hydr. agregát protiprokluzová regulace | 1 | 34512460458 | Shop at ECS Tuning | ||||||
| 02 | Opr.sada řídicí jedn. protipr. regulace | 1 | 34512460439 | Shop at ECS Tuning | ||||||
| 03 | Držák hydraulický agregát | 1 | 34516756279 | $9.65 | Shop at ECS Tuning | |||||
| 04 | Šestihranný šroub s podložkou | M6X12-U1-8.8 | 3 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Pryžové ložisko | 3 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 06 | Distanční pouzdro | ZNS3 | 1 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 07 | Šestihranný šroub s podložkou | M6X35 ZNS3 | 1 | 07146971298 | $0.82 | Shop at ECS Tuning | ||||
| 08 | Šroubový čep | M6 | 2 | 34506779434 | $2.78 | Shop at ECS Tuning | ||||
| 09 | Metrové zboží ochrana hrany | 5 METER | X | 23148372833 | $12.43 | Shop at ECS Tuning | ||||
| 10 | Pouzdro zásuvky | 47 POL. | 1 | 61136954574 | $7.28 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Zdířkový kontakt MQS ELA | 0,35-0,5 MM² | 4 | 61136901726 | $0.43 | Shop at ECS Tuning | ||||
| -- | Šoupátko modré | 1 | 61136901739 | $0.80 | Shop at ECS Tuning | |||||
| -- | Zdířkový kontakt ELO- Power 5,2 x 0,63 | 1,0- 2,5 MM² | 47 | 61138364846 | $0.50 | Shop at ECS Tuning | ||||
| -- | Utěsnění jednotlivých vodičů | 0.5-1.0MM² GN | 45 | 61138366245 | $0.17 | Shop at ECS Tuning | ||||
| -- | Utěsnění jednotlivých vodičů | 1,0- 2,5 MM² | 4 | 61138372628 | $0.50 | Shop at ECS Tuning | ||||
