Hydr. agr. dyn.kontr.stabil./držák/čidla for BMW MINI R50 Cooper (2000)

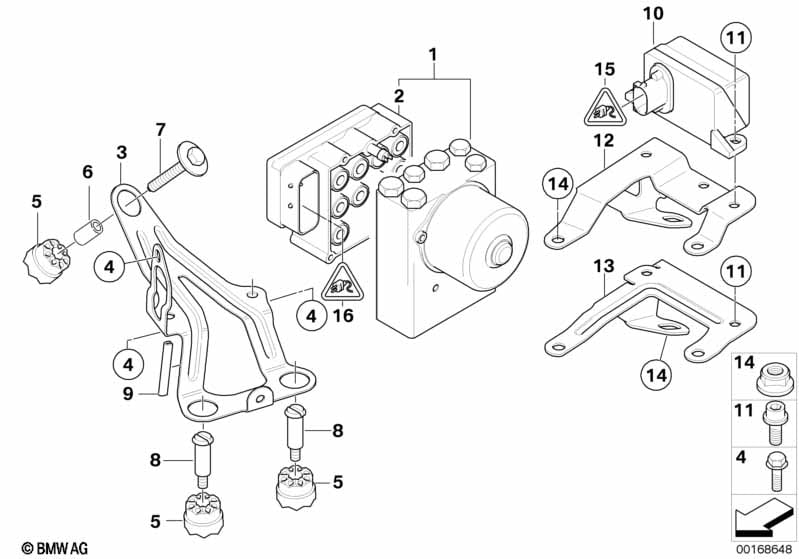

This Hydr. agr. dyn.kontr.stabil./držák/čidla technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Dynamická kontrola stability |
S210A=Ano |
||||||||
| 01 | Hydr. agregát dynam. kontrola stability | 1 | 34512460486 | Shop at ECS Tuning | ||||||
| 02 | Opr.sada řídicí jedn. dyn.kontr.stabil. | 1 | 34512460471 | Shop at ECS Tuning | ||||||
| 03 | Držák hydraulický agregát | 1 | 34516756279 | $9.65 | Shop at ECS Tuning | |||||
| 04 | Šestihranný šroub s podložkou | M6X12-U1-8.8 | 3 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Pryžové ložisko | 3 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 06 | Distanční pouzdro | ZNS3 | 3 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 07 | Šestihranný šroub s podložkou | M6X35 ZNS3 | 1 | 07146971298 | $0.82 | Shop at ECS Tuning | ||||
| 08 | Šroubový čep | M6 | 2 | 34506779434 | $2.78 | Shop at ECS Tuning | ||||
| 09 | Metrové zboží ochrana hrany | 5 METER | X | 23148372833 | $12.43 | Shop at ECS Tuning | ||||
| 10 | Čidlo rychlosti otáčení | 1 | 34526764018 | $556.54 | Shop at ECS Tuning | |||||
| 11 | Šroub Torx s podložkou | M6X16-8.8-ZNNIV | 2 | 07129904819 | $0.38 | Shop at ECS Tuning | ||||
| Pro vozidla s Loketní opěrka přední |
S473A=Ano |
|||||||||
| 13 | Držák dynamická kontrola stability čidlo | 1 | 34516769736 | $7.55 | Shop at ECS Tuning | |||||
| 14 | Matice s nákružkem samojistící | M8-10 ZNS3 | 1 | 07119905374 | Shop at ECS Tuning | |||||
| 15 | univerzální zdířková skříň nekódovaná | 6 POL. | 1 | 61138383300 | $3.47 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Zdířkový kontakt MQS ELA | 0.2-0.5 MM² SN | X | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
| -- | Utěsnění jednotlivých vodičů | 0.5-1.0MM² GN | X | 61138366245 | $0.17 | Shop at ECS Tuning | ||||
| 16 | Pouzdro zásuvky | 47 POL. | 1 | 61136954574 | $7.28 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Zdířkový kontakt MQS ELA | 0,35-0,5 MM² | X | 61136901726 | $0.43 | Shop at ECS Tuning | ||||
| -- | Zdířkový kontakt ELO- Power 5,2 x 0,63 | 1,0- 2,5 MM² | X | 61138364846 | $0.50 | Shop at ECS Tuning | ||||
| -- | Utěsnění jednotlivých vodičů | 0.5-1.0MM² GN | X | 61138366245 | $0.17 | Shop at ECS Tuning | ||||
| -- | Utěsnění jednotlivých vodičů | 1,0- 2,5 MM² | X | 61138372628 | $0.50 | Shop at ECS Tuning | ||||
