Brzdové potrubí přední for BMW 5 Series E60 525i (2005)

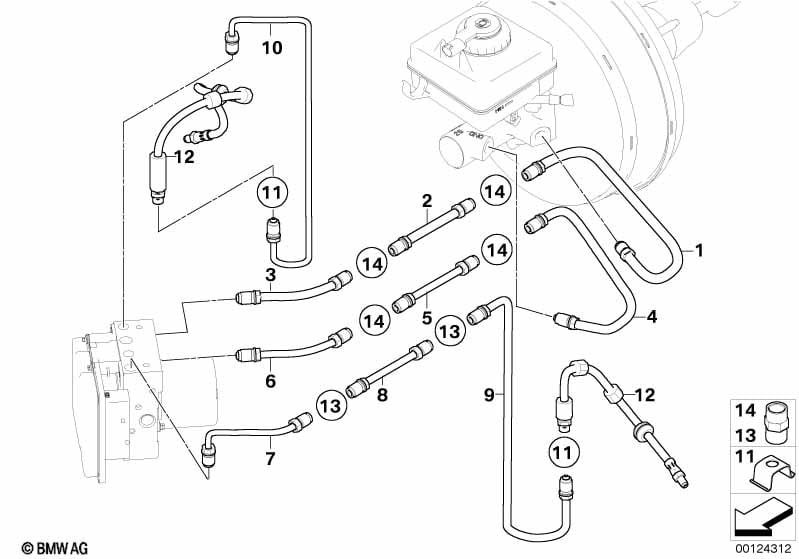

This Brzdové potrubí přední technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trubkové vedení | 1 | 34326772531 | $14.13 | Shop at ECS Tuning | |||||
| 02 | Trubkové vedení | 1 | 34326780396 | $22.72 | Shop at ECS Tuning | |||||
| 03 | Trubkové vedení | 1 | 11/2003 | 03/2005 | 34326767792 | $10.42 | Shop at ECS Tuning | |||
| 04 | Trubkové vedení | 1 | 34326772529 | $32.47 | Shop at ECS Tuning | |||||
| 05 | Trubkové vedení | 1 | 34326780398 | $14.13 | Shop at ECS Tuning | |||||
| 06 | Trubkové vedení | D=6MM | 1 | 34326772517 | $32.47 | Shop at ECS Tuning | ||||
| 07 | Trubkové vedení s ochrannou hadicí | 1 | 11/2003 | 11/2005 | 34326767797 | $12.43 | Shop at ECS Tuning | |||
| 10 | Trubkové vedení s ochrannou hadicí | M10/M12 | 1 | 11/2003 | 34326772473 | $32.47 | Shop at ECS Tuning | |||
| 11 | Přídržné péro | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 12 | Brzdová hadice přední | 2 | 34326767390 | $46.95 | Shop at ECS Tuning | |||||
| 13 | Mezikus | M10X1 | 2 | 34326757282 | $4.08 | Shop at ECS Tuning | ||||
| 14 | Mezikus | M12X1 | 4 | 34326757285 | $4.08 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 525i Brzdové potrubí přední?
- This technical diagram illustrates the Brzdové potrubí přední within the Brzdy group for the 5 Series E60 525i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Trubkové vedení (Part #34326772531).
- Which models use the hardware listed in this Brzdové potrubí přední?
- The hardware and components featured in the Brzdové potrubí přední are specific to the 5 Series E60 525i produced during 2005. These technical specifications ensure that parts like the Trubkové vedení (34326772531) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brzdové potrubí přední assembly?
- Each item in the Brzdové potrubí přední corresponds to the numbered list below the illustration. For the 5 Series E60 525i, you can identify the Trubkové vedení by locating its position on the schematic, which then links to the official BMW part number 34326772531 for the Brzdy section.
