Hydr.agr. dyn.kontr.stab./říd.jed./držák for BMW 5 Series E60 525i (2005)

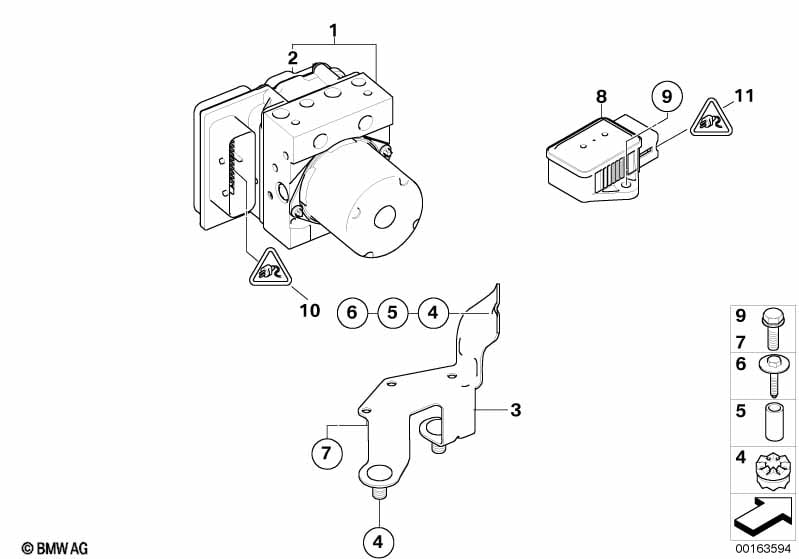

This Hydr.agr. dyn.kontr.stab./říd.jed./držák technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | další informace viz HG 32 | |||||||||
| 01 | RP hydraulická jednotka DSC | 1 | 09/2005 | 34516769704 | $2643.70 | UKONČENO | Shop at ECS Tuning | |||
| Pro vozidla s Aktivní řízení |
S217A=Ano |
|||||||||
| 01 | Hydr. agregát dynam. kontrola stability | 1 | 09/2005 | 34516769708 | $2643.70 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Opr.sada řídicí jedn. dyn.kontr.stabil. | 1 | 09/2005 | 34526769706 | $1264.82 | Shop at ECS Tuning | ||||
| Pro vozidla s Aktivní řízení |
S217A=Ano |
|||||||||
| 02 | Opr.sada řídicí jedn. dyn.kontr.stabil. | 1 | 09/2005 | 34526769710 | $1264.82 | Shop at ECS Tuning | ||||
| 03 | Držák hydraulický agregát | 1 | 34516758746 | $9.65 | Shop at ECS Tuning | |||||
| 04 | Pryžové ložisko | 3 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 05 | Distanční pouzdro | ZNS3 | 1 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 06 | Šestihranný šroub s podložkou | M6X35 ZNS3 | 1 | 07146971298 | $0.82 | Shop at ECS Tuning | ||||
| 07 | Šestihranný šroub s podložkou | M6X12-U1-8.8 | 3 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Čidlo rychlosti otáčení | 1 | 34526774039 | $556.54 | Shop at ECS Tuning | |||||
| 09 | Šestihranný šroub s podložkou | M6X20 | 2 | 09/2003 | 07119904527 | $0.44 | Shop at ECS Tuning | |||
| 10 | Pouzdro zásuvky | 38 POL. Z- CODE | 1 | 61136920060 | $8.38 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Zdířkový kontakt ELO-Power ELA s kabelem | 0,2- 0,5 MM² SN | X | 61130070581 | Shop at ECS Tuning | |||||
| -- | Zdířkový kontakt ELO-Power ELA s kabelem | 0,5- 1,0 MM² SN | X | 61130070582 | Shop at ECS Tuning | |||||
| -- | Zdířkový kontakt MQS ELA | 0,35-0,5 MM² | X | 61136901726 | $0.43 | Shop at ECS Tuning | ||||
| -- | Zdířkový kontakt MQS ELA | 0,75-1,5 MM² | X | 61136901728 | $0.35 | Shop at ECS Tuning | ||||
| -- | Šoupátko | X | 61136920061 | $0.68 | Shop at ECS Tuning | |||||
| -- | Odnímatelný kryt | 38 POL. | X | 61136920063 | $2.07 | Shop at ECS Tuning | ||||
| -- | Zdířkový kontakt ELO- Power 5,2 x 0,63 | 1,0- 2,5 MM² | X | 61138364846 | $0.50 | Shop at ECS Tuning | ||||
| -- | Zdířkový kontakt ELO- Power 5,2 x 0,63 | 2,5- 4,0 MM² | X | 61138364848 | $0.62 | Shop at ECS Tuning | ||||
| -- | Utěsnění jednotlivých vodičů | 0.5-1.0MM² GN | X | 61138366245 | $0.17 | Shop at ECS Tuning | ||||
| -- | Utěsnění jednotlivých vodičů | 2,5- 4,0 MM² | 1 | 61138372638 | $0.50 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
