Hydr.agr. dyn.kontr.stab./říd.jed./držák for BMW 5 Series E61 530d (2007)

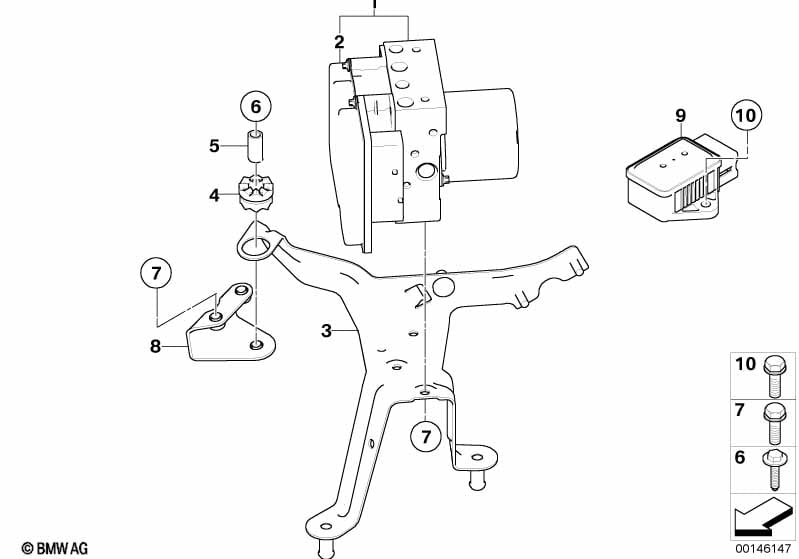

This Hydr.agr. dyn.kontr.stab./říd.jed./držák technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydr. agregát dynam. kontrola stability | 1 | 34516791108 | $2722.62 | Shop at ECS Tuning | |||||
| Pro vozidla s Aktivní řízení |
S217A=Ano |
|||||||||
| 01 | Hydr. agregát dynam. kontrola stability | 1 | 09/2005 | 34516777802 | $2643.70 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Opr.sada řídicí jedn. dyn.kontr.stabil. | 1 | 09/2005 | 34526791110 | $1264.82 | Shop at ECS Tuning | ||||
| Pro vozidla s Aktivní řízení |
S217A=Ano |
|||||||||
| 02 | Opr.sada řídicí jedn. dyn.kontr.stabil. | 1 | 09/2005 | 34526777804 | $1264.82 | Shop at ECS Tuning | ||||
| 03 | Držák hydraulický agregát | 1 | 34516758748 | UKONČENO | Shop at ECS Tuning | |||||
| 04 | Pryžové ložisko | 3 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 05 | Distanční pouzdro | ZNS3 | 1 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 06 | Šestihranný šroub s podložkou | M6X35 ZNS3 | 1 | 07146971298 | $0.82 | Shop at ECS Tuning | ||||
| 07 | Šestihranný šroub s podložkou | M6X12-U1-8.8 | 5 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Pomocný držák hydraulický agregát | 1 | 34516774690 | UKONČENO | Shop at ECS Tuning | |||||
| Pro vozidla s Aktivní řízení |
S217A=Ne |
|||||||||
| 09 | Čidlo rychlosti otáčení | 1 | 09/2005 | 34526782370 | $556.54 | Shop at ECS Tuning | ||||
| 10 | Šestihranný šroub s podložkou | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
