Páka ruční brzdy for BMW MINI Paceman R61 Cooper

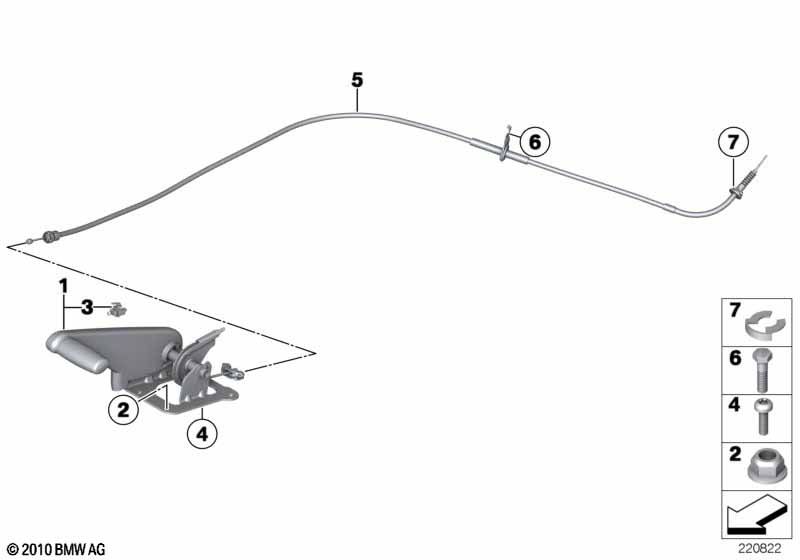

This Páka ruční brzdy technical drawing provides a detailed breakdown of the assembly for the MINI Paceman R61 Cooper. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Páka ruční brzdy | 1 | 34409811241 | Shop at ECS Tuning | ||||||
| 02 | Matice s nákružkem samojistící | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| 03 | Spínač kontrolka ruční brzdy | 1 | 34409806176 | +core | Shop at ECS Tuning | |||||
| 04 | Šroub | M4 | 1 | 34406765685 | $0.73 | Shop at ECS Tuning | ||||
| 05 | Bovden ruční brzdy levý | 1 | 34409813389 | Shop at ECS Tuning | ||||||
| 05 | Bovden ruční brzdy pravý | 1 | 34409813390 | Shop at ECS Tuning | ||||||
| 06 | Šestihranný šroub | M6X16 10.9 ZNS3 | 2 | 07119907477 | Shop at ECS Tuning | |||||
| 07 | Pojistka | 16- ZNS3 | 2 | 07129905860 | $0.40 | Shop at ECS Tuning |
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
