Zadní brzda-brzdový kotouč for BMW MINI Paceman R61 Cooper

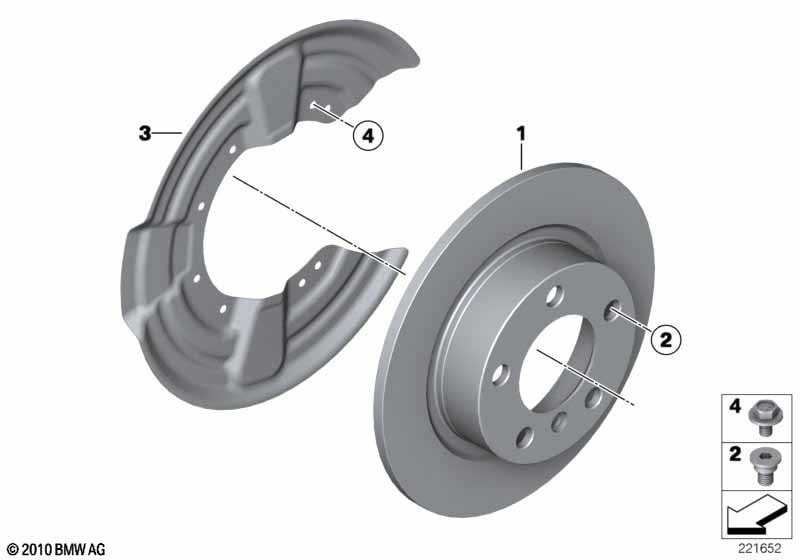

This Zadní brzda-brzdový kotouč technical drawing provides a detailed breakdown of the assembly for the MINI Paceman R61 Cooper. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brzdový kotouč | 280X10 | 2 | 34219811539 | Shop at ECS Tuning | |||||
| 02 | Šroub s vnitřním šestihranem | M8X14 | 2 | 34211161806 | $1.38 | Shop at ECS Tuning | ||||
| 03 | Krycí plech | 2 | 34209805960 | Shop at ECS Tuning | ||||||
| 04 | Šestihranný šroub | M6X12-10.9-MK- | 8 | 34116868785 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Paceman R61 Cooper Zadní brzda-brzdový kotouč?
- This technical diagram illustrates the Zadní brzda-brzdový kotouč within the Brzdy group for the MINI Paceman R61 Cooper. It provides a detailed exploded view of the components, identifying key parts such as the Brzdový kotouč (Part #34219811539).
- Which models use the hardware listed in this Zadní brzda-brzdový kotouč?
- The hardware and components featured in the Zadní brzda-brzdový kotouč are specific to the MINI Paceman R61 Cooper. These technical specifications ensure that parts like the Brzdový kotouč (34219811539) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zadní brzda-brzdový kotouč assembly?
- Each item in the Zadní brzda-brzdový kotouč corresponds to the numbered list below the illustration. For the MINI Paceman R61 Cooper, you can identify the Brzdový kotouč by locating its position on the schematic, which then links to the official BMW part number 34219811539 for the Brzdy section.
